Product Details

Description



Features:

* 16 I/O pins with individual direction control
* High current sink/source for direct LED drive
* Analog comparator module with:
   - Two analog comparators
   - Programmable on-chip voltage reference  (VREF) module
   - Programmable input multiplexing from device  inputs and internal voltage reference
   - Comparator outputs are externally accessible
* Timer0: 8-bit timer/counter with 8-bit  programmable prescaler
* Timer1: 16-bit timer/counter with external crystal/ clock capability
* Timer2: 8-bit timer/counter with 8-bit period  register, prescaler and postscaler
* Capture, Compare, PWM (CCP) module
   - Capture is 16-bit, max. resolution is 12.5 ns
   - Compare is 16-bit, max. resolution is 200 ns
   - PWM max. resolution is 10-bit
* Universal Synchronous/Asynchronous Receiver/ Transmitter USART/SCI
* 16 Bytes of common RAM


Pinout

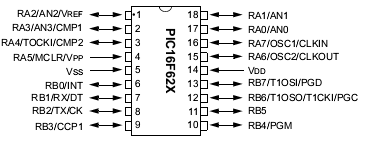

Connection Diagram


Specifications

Ambient temperature under bias.........................................-40 to +125°C
Storage temperature..................................................... -65°C to +150°C
Voltage on VDD with respect to VSS ...................................... -0.3 to +6.5V
Voltage on MCLR and RA4 with respect to VSS ........................-0.3 to +14V
Voltage on all other pins with respect to VSS ...............-0.3V to VDD + 0.3V
Total power dissipation ....................................................................800 mW
Maximum current out of VSS pin.........................................................300 mA
Maximum current into VDD pin............................................................250 mA
Input clamp current, IIK (VI < 0 or VI > VDD)....................................± 20 mA
Output clamp current, IOK (Vo < 0 or Vo >VDD)................................± 20 mA
Maximum output current sunk by any I/O pin........................................25 mA
Maximum output current sourced by any I/O pin...................................25 mA
Maximum current sunk by PORTA and PORTB.......................................200 mA
Maximum current sourced by PORTA and PORTB..................................200 mA
