Features:

• 4 or 8 MHz selectable precision internal oscillator:
- Factory calibrated to ±1%
• In-Circuit Serial Programming™ (ICSP™)
• In-Circuit Debugging (ICD) support
• Power-on Reset (POR)
• Device Reset Timer (DRT):
- Short DRT (1.125 ms, typical) for INTOSC, EXTRC and EC
- DRT (18 ms, typical) for HS, XT and LP
• Watchdog Timer (WDT) with dedicated on-chip RC oscillator for reliable operation
• Programmable code protection
• MultiplexedMCLR input pin
• Selectable internal weak pull-ups on I/O pins
• Power-Saving Sleep mode
• Wake-up from Sleep on pin change
• Wake-up from Sleep on comparator change
• Selectable oscillator options:
- INTOSC: 4/8 MHz precision Internaloscillator
- EXTRC: External low-cost RC oscillator
- XT: Standard crystal/resonator
- LP: Power-saving, low-frequency crystal
- HS: High-speed crystal/resonator (PIC16F506 only)
- EC: High-speed external clock input (PIC16F506 only)
• Analog-to-Digital (A/D) Converter:
- 8-bit resolution
-4-input channels (1 channel is dedicated to conversion of the internal 0.6V absolute voltage reference)
• High current sink/source for direct LED drive
• 8-bit real-time clock/counter (TMR0) with 8-bit programmable prescaler
• 12 I/O pins:
- 11 I/O pins with individual direction control
- 1 input only pin
• 2 Analog Comparators with absolute reference and programmable reference





Application

The PIC12F510/16F506 devices fit in applications ranging from personal care appliances and security systems to low-power remote transmitters/receivers. The Flash technology makes customizing application programs (transmitter codes, appliance settings, receiver frequencies, etc.) extremely fast and convenient. The small footprint packages, for through hole or surface mounting, make these microcontrollers perfect for applications with space limitations. Low-cost, lowpower,high-performance, ease-of-use and I/O flexibility make the PIC12F510/16F506 devices very versatile, even in areas where no microcontroller use has been considered before (e.g., timer functions, logic and PLDs in larger systems and coprocessor applications).






Pinout

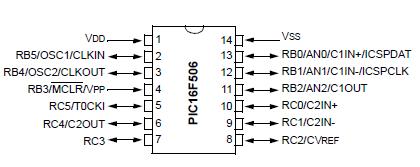

  Connection Diagram




Specifications

Parameter Name Value
Program Memory Type Flash
Program Memory (KB) 1.5
CPU Speed (MIPS) 5
RAM Bytes 67
Timers 1 x 8-bit
ADC 3 ch, 8-bit
Comparators 2
Temperature Range (C) -40 to 125
Operating Voltage Range (V) 2 to 5.5
Pin Count 14


Ambient temperature under bias................................................................................... -40°C to +125°C
Storage temperature .................................................................................................... -65°C to +150°C
Voltage on VDD with respect to VSS ........................................................................................... 0 to +7.0V
Voltage onMCLR with respect to VSS............................................................................................0 to +14V
Voltage on all other pins with respect to VSS ............................................................ -0.3V to (VDD + 0.3V)
Total power dissipation(1) .............................................................................................................700 mW
Max. current out of VSS pin ..............................................................................................................200 mA
Max. current into VDD pin .................................................................................................................150 mA
Input clamp current, IIK (VI < 0 or VI > VDD)....................................................................................±20 mA
Output clamp current, IOK (VO < 0 or VO > VDD) ..............................................................................±20 mA
Max. output current sunk by any I/O pin .............................................................................................25 mA
Max. output current sourced by any I/O pin ........................................................................................25 mA
Max. output current sourced by I/O port ............................................................................................100 mA
Max. output current sunk by I/O port .................................................................................................100 mA

Note 1: Power dissipation is calculated as follows: PDIS = VDD x {IDD - IOH} + {(VDD-VOH) x IOH} + (VOL x IOL)

†NOTICE: Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at those or any other conditions above those indicated in the operation listings of this specification is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.






Description

The PIC12F510/PIC16F506 devices from Microchip Technology are low-cost, high-performance, 8-bit, fullystatic, Flash-based CMOS microcontrollers. They employ a RISC architecture with only 33 single-word/ single-cycle instructions. All instructions are singlecycle except for program branches, which take two cycles. The PIC12F510/PIC16F506 devices deliver performance in an order of magnitude higher than their competitors in the same price category. The 12-bit wide instructions are highly symmetrical, resulting in a typical 2:1 code compression over other 8-bit microcontrollers in its class. The easy-to-use and easyto- remember instruction set reduces development time significantly.

The PIC12F510/PIC16F506 products are equipped with special features that reduce system cost and power requirements. The Power-on Reset (POR) and Device Reset Timer (DRT) eliminate the need for external Reset circuitry. There are four oscillator configurations to choose from (six on the PIC16F506), including INTOSC Internal Oscillator mode and the power-saving LP (Low-power) Oscillator mode. Power-saving Sleep mode, Watchdog Timer and code protection features improve system cost, power and reliability.

The PIC12F510/PIC16F506 devices allow the customer to take full advantage of Microchip's price leadership in Flash programmable microcontrollers, while benefiting from the Flash programmable flexibility.

The PIC12F510/PIC16F506 products are supported by a full-featured macro assembler, a software simulator, an in-circuit emulator, a 'C' compiler, a low-cost development programmer and a full featured programmer. All the tools are supported on IBM® PC and compatible machines.
