PIC16C65B

Features: Peripheral Features:• 33 I/O pins with individual direction cotrol• High sink/source current 25 mA• TMR0: 8-bit timer/counter with 8-bit programmable prescaler• TMR1: 16-bit timer/counter (time-base for capture/compare).TMR1 can be incremented during sleep via ext...

product image

PIC16C65B Picture
See larger image
SeekIC No. : 004461683 Detail

PIC16C65B: Features: Peripheral Features:• 33 I/O pins with individual direction cotrol• High sink/source current 25 mA• TMR0: 8-bit timer/counter with 8-bit programmable prescaler• TMR...

PIC16C65B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PIC16C65B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Peripheral Features:
• 33 I/O pins with individual direction cotrol
• High sink/source current 25 mA
• TMR0: 8-bit timer/counter with 8-bit programmable prescaler
• TMR1: 16-bit timer/counter (time-base for capture/compare).
TMR1 can be incremented during sleep via external crystal/clock (for real-time clock)
• TMR2: 8-bit timer/counter with 8-bit period register (timebase for PWM), prescaler and postscaler
• Two CCP pins that can be configured as capture input, PWM output, or compare output
- Capture is 16-bit, max resolution 12.5 ns
- Compare is 16-bit, max resolution 200 ns
- PWM resolution is 1- to 10-bit. Maximum PWM frequency @: 8-bit resolution = 80 kHz, 10-bit resolution= 20 kHz
• Synchronous Serial Port (SSP) with two modes of operation:
- 3-wire SPITM (Supports all 4 SPI modes)
-I2CTM slave mode
• USART (supports high and low speed)/SCI
• Parallel Slave Port (PSP), 8-bits wide with external RD, WR,and CS controls
Special Microcontroller Features:
• Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
• Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
• Programmable code protection
• Power saving SLEEP mode
• Selectable oscillator options
• In-Circuit Serial programming (ICSP™) via two pins
• Brown-out Reset circuitry




Pinout

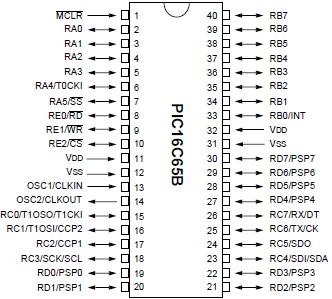

Connection Diagram




Specifications

Parameter Name Value
Program Memory Type OTP
Program Memory (KB) 7
CPU Speed (MIPS) 5
RAM Bytes 192
Digital Communication Peripherals 1-A/E/USART, 1-SSP(SPI/I2C)
Capture/Compare/PWM Peripherals 2 CCP
Timers 2 x 8-bit, 1 x 16-bit
Temperature Range (C) -40 to 85
Operating Voltage Range (V) 2.5 to 6
Pin Count 40
