PIC16C62B

Features:

• High-performance RISC CPU
• Only 35 single word instructions to learn
• All single cycle instructions except for program branches, which are two cycle
• Operating speed: DC - 20 MHz clock input DC - 200 ns instruction cycle
• 2K x 14 words of Program Memory, 128 x 8 bytes of Data Memory (RAM)
• Interrupt capability
• Eight level deep hardware stack
• Direct, indirect, and relative addressing modes
• Power-on Reset (POR)
• Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
• Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
• Brown-out detection circuitry for Brown-out Reset (BOR)
• Programmable code-protection
• Power saving SLEEP mode
• Selectable oscillator options
• Low-power, high-speed CMOS EPROM technology
• Fully static design
• In-Circuit Serial Programmingä (ICSP)
• Wide operating voltage range: 2.5V to 5.5V
• High Sink/Source Current 25/25 mA
• Commercial, Industrial and Extended temperature ranges
• Low-power consumption:
- < 2 mA @ 5V, 4 MHz
- 22.5 mA typical @ 3V, 32 kHz
- < 1 mA typical standby current
• Timer0: 8-bit timer/counter with 8-bit prescaler
• Timer1: 16-bit timer/counter with prescaler, can be incremented during sleep via external crystal/clock
• Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
• Capture, Compare, PWM module
• Capture is 16-bit, max. resolution is 12.5 ns, Compare is 16-bit, max. resolution is 200 ns, PWM
maximum resolution is 10-bit
• 8-bit multi-channel Analog-to-Digital converter
• Synchronous Serial Port (SSP) with Enhanced SPIä and I2Cä

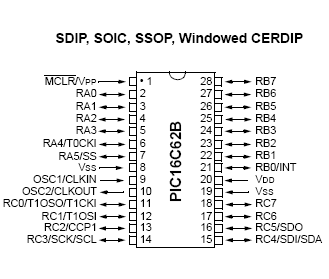

Pinout






Specifications

Parameter Name	Value
Program Memory Type	OTP
Program Memory (KB)	3.5
CPU Speed (MIPS)	5
RAM Bytes	128
Digital Communication Peripherals	1-SSP(SPI/I2C)
Capture/Compare/PWM Peripherals	1 CCP
Timers	2 x 8-bit, 1 x 16-bit
Temperature Range (C)	-40 to 85
Operating Voltage Range (V)	2.5 to 6
Pin Count	28

Ambient temperature under bias................................................................................................-55°C to +125°C
Storage temperature ................................................................................................................ -65°C to +150°C
Voltage on any pin with respect to VSS (except VDD, MCLR, and RA4).................................. -0.3V to (VDD + 0.3V)
Voltage on VDD with respect to VSS ................................................................................................ -0.3V to +7.5V
Voltage on MCLR with respect to VSS (Note 2)................................................................................. 0V to +13.25V
Voltage on RA4 with respect to Vss ..................................................................................................... 0V to +8.5V
Total power dissipation (Note 1)......................................................................................................................1.0W
Maximum current out of VSS pin ..................................................................................................................300 mA
Maximum current into VDD pin .....................................................................................................................250 mA
Input clamp current, IIK (VI < 0 or VI > VDD).............................................................................................. ±20 mA
Output clamp current, IOK (VO < 0 or VO > VDD) ....................................................................................... ±20 mA
Maximum output current sunk by any I/O pin..................................................................................................25 mA
Maximum output current sourced by any I/O pin ............................................................................................25 mA
Maximum current sunk by PORTA and PORTB (combined) .............................................................................200 mA
Maximum current sourced by PORTA and PORTB (combined).........................................................................200 mA
Maximum current sunk by PORTC...................................................................................................................200 mA
Maximum current sourced by PORTC .............................................................................................................200 mA




Description

Parameter Name Value Program Memory Type OTP Program Memory (KB) 3.5 CPU Speed (MIPS) 5 RAM Bytes 128 Digital Communication Peripherals 1-SSP(SPI/I2C) Capture/Compare/PWM Peripherals 1 CCP Timers 2 x 8-bit, 1 x 16-bit Temperature Range (C) -40 to 85 Operating Voltage Range (V) 2.5 to 6 Pin Count 28 Features
