PIC12F675

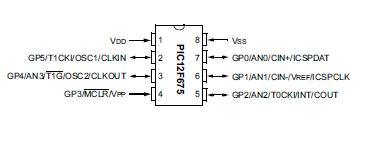

Pinout

Specifications

Parameter Name	Value
Program Memory Type	Flash
Program Memory (KB)	1.75
CPU Speed (MIPS)	5
RAM Bytes	64
Data EEPROM (bytes)	128
Timers	1 x 8-bit, 1 x 16-bit
ADC	4 ch, 10-bit
Comparators	1
Temperature Range (C)	-40 to 125
Operating Voltage Range (V)	2 to 5.5
Pin Count	8

Description

This powerful (200 nanosecond instruction execution) yet easy-to-program of PIC12F675 (only 35 single word instructions) CMOS Flash-based 8-bit microcontroller packs Microchip's powerful PIC? MCU architecture into an 8-pin package and features 4 channels for the10-bit Analog-to-Digital (A/D) converter, 1 channel comparator and 128 bytes of EEPROM data memory. This device is easily adapted for automotive, industrial, appliances and consumer entry-level product applications that require field re-programmability.

The PIC12F675 is designed as 8-pin flash-based 8-bit CMOS microcontroller. It has a 10-bit A/D converter.

PIC12F675 has many special microcontroller features. (1)Internal and external oscillator options. (2)Power saving SLEEP mode. (3)Wide operating voltage range -2.0V to 5.5V. (4)Industrial and extended temperature range. (5)Low power power-on reset (POR). (6)Power-up timer (PWRT) and oscillator start-up timer (OST). (7)Brown-out detect (BOD). (8)Watchdog timer (WDT) with independent oscillator for reliable operation. (9)Multiplexed MCLR/Input-pin. (10)Interrupt-on-pin change. (11)Individual programmable weak pull-ups. (12)Programmable code protection. And so on.

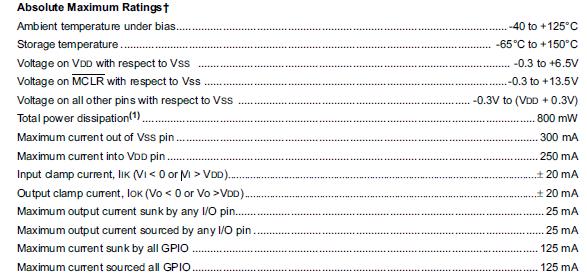

Some absolute maximum ratings of PIC12F675 have been concluded into several points as follow. (1)Its ambient temperature under bias would be from -40°C to 125°C. (2)Its storage temperature range would be from -65°C to 150°C. (3)Its voltage on Vdd with respect to Vss would be from -0.3V to +6.5V. (4)Its voltage on MCLR with respect to Vss would be from -0.3V to +13.5V. (5)Its voltage on all other pins with respect to Vss would be from -0.3V to Vdd+0.3V. (6)Its total power dissipation would be 800mW. (7)Its maximum current of Vss pin would be 300mA. (8)Its maximum current into Vdd pin would be 250mA. (9)Its input clamp current would be +/-20mA. (10)Its output clamp current would be +/-20mA. (11)Its maximum output current sunk by any I/O pin would be 25mA. (12)Its maximum output current sourced by any I/O pin would be 25mA. (13)Its maximum current sunk by all GPIO would be 125mA. (14)Its maximum current sourced all GPIO would be 125mA. PIC12F675 should be noted that stresses above those listed in absolute maximum ratings may cause permanent damage to device.

Also some electrical characteristics of PIC12F675 are concluded as follow. (1)Its supply voltage would be min 2.0V and max 5.5V. (2)Its RAM data retention voltage would be min 1.5V. (3)Its Vdd start voltage to ensure internal power-on reset signal would be typ Vss. And so on. If you have any question or suggestion or want to know more information please contact us for details. Thank you!
