Features:

• Shunt Voltage Regulator (PIC12HV609/615 only):
- 5 volt regulation
- 4 mA to 50 mA shunt range
• 5 I/O pins and 1 input only
• High current source/sink for direct LED drive
- Interrupt-on-pin change or pins
- Individually programmable weak pull-ups
• Analog Comparator module with:
- One analog comparator
- Programmable on-chip voltage reference
(CVREF) module (% of VDD)
- Comparator inputs and output externally accessible
- Built-In Hysteresis (software selectable)
• Timer0: 8-bit timer/counter with 8-bit
programmable prescaler
• Enhanced Timer1:
- 16-bit timer/counter with prescaler
- External Timer1 Gate (count enable)
- Option to use OSC1 and OSC2 in LP mode
as Timer1 oscillator if INTOSC mode selected
- Option to use system clock as Timer1
• In-Circuit Serial ProgrammingTM (ICSPTM) via two pins
PIC12F615/HV615 ONLY:
• Enhanced Capture, Compare, PWM module:
- 16-bit Capture, max. resolution 12.5 ns
- Compare, max. resolution 200 ns
- 10-bit PWM with 1 or 2 output channels, 1
output channel programmable "dead time",
max. frequency 20 kHz, auto-shutdown
• A/D Converter:
- 10-bit resolution and 4 channels, samples
internal voltage references
• Timer2: 8-bit timer/counter with 8-bit period
register, prescaler and postscaler

Pinout

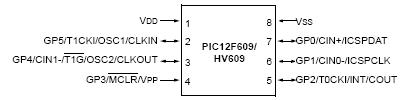

Connection Diagram

Specifications

Parameter Name	Value
Program Memory Type	Flash
Program Memory (KB)	1.75
CPU Speed (MIPS)	5
RAM Bytes	64
Timers	1 x 8-bit, 1 x 16-bit
Comparators	1
Temperature Range (C)	-40 to 125
Operating Voltage Range (V)	2 to 15
Pin Count	8

Ambient temperature under bias...................................................................................................-40° to +125°C
Storage temperature ................................................................................................................. -65°C to +150°C
Voltage on VDD with respect to VSS .............................................................................................. -0.3V to +6.5V
Voltage on MCLR with respect to Vss ........................................................................................... -0.3V to +13.5V
Voltage on all other pins with respect to VSS ...................................................................... -0.3V to (VDD + 0.3V)
Total power dissipation(1) ....................................................................................................................... 800 mW
Maximum current out of VSS pin .................................................................................................................. 95 mA
Maximum current into VDD pin ..................................................................................................................... 95 mA
Input clamp current, IIK (VI < 0 or VI > VDD)..............................................................................................± 20 mA
Output clamp current, IOK (Vo < 0 or Vo >VDD)..........................................................................................± 20 mA
Maximum output current sunk by any I/O pin................................................................................................ 25 mA
Maximum output current sourced by any I/O pin .......................................................................................... 25 mA
Maximum current sunk by GPIO..................................................................................................................... 90 mA
Maximum current sourced GPIO..................................................................................................................... 90 mA
Note 1: Power dissipation is calculated as follows: PDIS = VDD x {IDD IOH} + {(VDD VOH) x IOH} + (VOl x IOL).

Description

The PIC12F609/615/12HV609/615 has a 13-bit program counter capable of addressing an 8K x 14 program memory space. Only the first 1K x 14 (0000h- 03FFh) for the PIC12F609/615/12HV609/615 is physically implemented. Accessing a location above these boundaries will cause a wraparound within the first 1K x 14 space. The Reset vector is at 0000h and the interrupt vector is at 0004h (see Figure 2-1).
