PIC12F510

Special Microcontroller Features:
• 4 or 8 MHz selectable precision internal oscillator:
- Factory calibrated to ±1%
• In-Circuit Serial Programming™ (ICSP™)
• In-Circuit Debugging (ICD) support
• Power-on Reset (POR)
• Device Reset Timer (DRT)
- Short DRT (1.125 ms, typical) for INTOSC, EXTRC and EC
- DRT (18 ms, typical) for HS, XT and LP
• Watchdog Timer (WDT) with dedicated on-chip RC oscillator for reliable operation
• Programmable code protection
• MultiplexedMCLR input pin
• Selectable internal weak pull-ups on I/O pins
• Power-saving Sleep mode
• Wake-up from Sleep on pin change
• Wake-up from Sleep on comparator change
• Selectable oscillator options:
- INTOSC: 4/8 MHz precision Internal oscillator
- EXTRC: External low-cost RC oscillator
- XT: Standard crystal/resonator
- HS: High-speed crystal/resonator (PIC16F506 only)
- LP: Power-saving, low-frequency crystal
- EC: High-speed external clock input (PIC16F506 only)
• Analog-to-Digital (A/D) Converter
- 8-bit resolution
- 4-input channels (1 channel is dedicated to conversion of the internal 0.6V absolute voltage reference)
• High current sink/source for direct LED drive
• 8-bit real-time clock/counter (TMR0) with 8-bit programmable prescaler

Low-Power Features/CMOS Technology:
• Operating Current:
- < 350 A @ 2V, 4 MHz
• Standby Current:
- 100 nA @ 2V, typical
• Low-power, high-speed Flash technology:
- 100,000 cycle Flash endurance
- > 40-year retention
• Fully static design
• Wide operating voltage range: 2.0V to 5.5V
• Wide temperature range:
- Industrial: -40°C to +85°C
- Extended: -40°C to +125°C

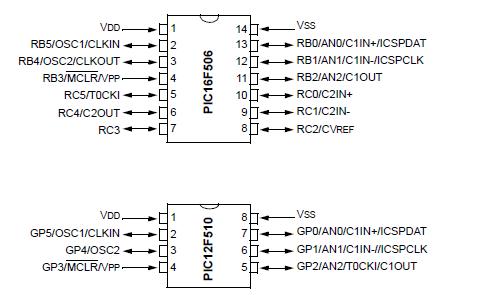

Peripheral Features (PIC12F510):
• 6 I/O pins:
- 5 I/O pins with individual direction control
- 1 input only pin
• 1 Analog Comparator with absolute reference

Peripheral Features (PIC16F506):
• 12 I/O pins:
- 11 I/O pins with individual direction control
- 1 input only pin
• 2 Analog Comparators with absolute reference and programmable reference

Absolute Maximum Ratings†
Ambient temperature under bias............................... -40°C to +125°C
Storage temperature ............................................... -65°C to +150°C
Voltage on V_DD with respect to V_SS ...................................... 0 to +7.0V
Voltage onMCLR with respect to V_SS.....................................0 to +14V
Voltage on all other pins with respect to V_SS ......-0.3V to (V_DD + 0.3V)
Total power dissipation(1) ......................................................700 mW
Max. current out of V_SS pin .......................................................200 mA
Max. current into V_DD pin ..........................................................150 mA
Input clamp current, I_IK (V_I < 0 or V_I > V_DD)............................±20 mA
Output clamp current, I_OK (V_O < 0 or V_O > V_DD).......................±20 mA
Max. output current sunk by any I/O pin .....................................25 mA
Max. output current sourced by any I/O pin .................................25 mA
Max. output current sourced by I/O port ....................................100 mA
Max. output current sunk by I/O port ..........................................100 mA

Note 1: Power dissipation is calculated as follows: PD_IS = V_DD x {I_DD - I_OH} + {(V_DD-V_OH) x I_OH} + (V_OL x I_OL)
†NOTICE: Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the
device. This is a stress rating only and functional operation of the device at those or any other conditions above
those indicated in the operation listings of this specification is not implied. Exposure to maximum rating conditions
for extended periods may affect device reliability.
