Features:

• 8-bit real-time clock/counter (TMR0) with 8-bit programmable prescaler
• 1,000,000 erase/write cycle EEPROM data memory
• EEPROM data retention > 40 years
• In-Circuit Serial Programming (ICSP™) of program memory (via two pins)
• Internal 4 MHz RC oscillator with programmable calibration
• Power-on Reset (POR)
• Device Reset Timer (DRT)
• Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
• Programmable code-protection
• Power saving SLEEP mode
• Wake-up from SLEEP on pin change
• Internal weak pull-ups on I/O pins
• Internal pull-up on MCLR pin
• Selectable oscillator options: - INTRC: Internal 4 MHz RC oscillator - EXTRC: External low-cost RC oscillator - XT: Standard crystal/resonator - LP: Power saving, low frequency crystal

Pinout

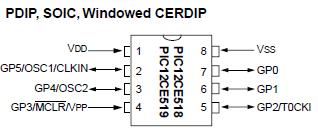

Connection Diagram

Specifications

Ambient Temperature under bias ...........................................................................................40°C to +125°C
Storage Temperature..............................................................................................................65°C to +150°C
Voltage on VDD with respect to VSS .........................................................................................0 to +7.0 V
Voltage on MCLR with respect to VSS........................................................................................0 to +14 V
Voltage on all other pins with respect to VSS ........................................................................0.6 V to (VDD + 0.6 V)
Total Power Dissipation(1) ........................................................................................................700 mW
Max. Current out of VSS pin........................................................................................................200 mA
Max. Current into VDD pin...........................................................................................................150 mA
Input Clamp Current, IIK (VI < 0 or VI > VDD) ..........................................................................±20 mA
Output Clamp Current, IOK (VO < 0 or VO > VDD) ................................................................... ±20 mA
Max. Output Current sunk by any I/O pin ....................................................................................25 mA
Max. Output Current sourced by any I/O pin................................................................................25 mA
Max. Output Current sourced by I/O port (GPIO).........................................................................100 mA
Max. Output Current sunk by I/O port (GPIO ).............................................................................100 mA

Note 1: Power Dissipation is calculated as follows: PDIS = VDD x {IDD - å IOH} + å {(VDD-VOH) x IOH} + å(VOL x IOL)

Description

PIC12CE5XX feature

• Only 33 single word instructions to learn
• All instructions are single cycle (1 ms) except for program branches which are two-cycle
• Operating speed: DC - 4 MHz clock input DC - 1 ms instruction cycle
