PI90LV024

Features: • Dual 2x2 Crosspoint/Repeater Switch• Meets or Exceeds the Requirements of ANSI TIA/EIA-644-1995• Designed for Signaling Rates up to 650 Mbit/s (325 MHz)• Operates from a 3.3V Supply: 40°C to 85°C• Low Voltage Differential Signaling with Output Voltagesof ±...

product image

PI90LV024 Picture
SeekIC No. : 004461451 Detail

PI90LV024: Features: • Dual 2x2 Crosspoint/Repeater Switch• Meets or Exceeds the Requirements of ANSI TIA/EIA-644-1995• Designed for Signaling Rates up to 650 Mbit/s (325 MHz)• Operates...

floor Price/Ceiling Price

Part Number:
PI90LV024
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Dual 2x2 Crosspoint/Repeater Switch
• Meets or Exceeds the Requirements of ANSI TIA/EIA-644-1995
• Designed for Signaling Rates up to 650 Mbit/s (325 MHz)
• Operates from a 3.3V Supply: 40°C to 85°C
• Low Voltage Differential Signaling with Output Voltagesof ±350mV into: 100 Ohm load (PI90LV024)50 Ohm load Bus LVDS Signaling (PI90LVB024)
• Accepts ±350mV differential inputs
• Wide common mode input range: 0.2V to 2.7V
• Output drivers are high impedance when disabled or whenVCC 1.5V
• Inputs are open, short, and terminated fail safe
• Propagation Delay Time: 3.5ns
• ESD protection is 10kV on bus pins
• Bus Pins are High Impedance when disabled or withVCC less than 1.5V
• TTL Inputs are 5V Tolerant
• Power Dissipation at 400Mbit/s of 250mW
• Available Packaging: 28-pin QSOP, 28-pin TSSOP

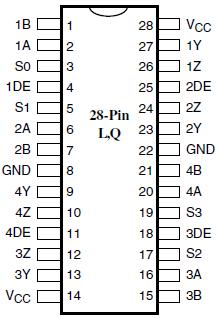

Pinout

  Connection Diagram


Specifications

Supply Voltage Range, VCC
(1) .................................................................................. 0.5V to 4V
Voltage Range (DE, S0, S1) ......................................................................... 0.5 to 6V
Input Voltage Range, VI (A or B) .................................................0.5V to VCC + 0.5V
Electrostatic Discharge: A, B, Y, Z, and GND(2) ........................ Class 3, A: 16kV, B:600V
All Pins ................................................ Class 3, A: 7kV, B:500V
Storage Temperature Range ................................................................ 65°C to 150°C
Lead Temperature 1, 6 mm (1/16 inch) from case for 10 seconds ........................ 260°C

† Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanentdamage to the device. These are stress ratings only, and functional operation of the deviceat these or any other conditions beyond those indicated under "Recommended OperatingConditions" is not implied. Exposure to Absolute-Maximum-Rated conditions for extendedperiods may affect device reliability.

Notes:
1. All voltage values, except differential I/O bus voltages, are with respect to ground terminal.

2. Tested in accordance with MIL-STD-883C Method 3015.7



Description

The PI90LV024 and PI90LVB024 are monolithic dual 2x2 asynchronouscrosspoint/repeater switches. The crosspoint function isbased on a multiplexer tree architecture. Each 2x2 switch can beconsidered as a pair of 2:1 multiplexers that share the same inputs.

The signal path of  through PI90LV024 and PI90LVB024 each switch is fully differential with minimalpropagation delay. The signal path is unregistered, so no clock isrequired for the data inputs. The signal line drivers and receivers useLow Voltage Differential Signaling (LVDS) to achieve signalingrates as high as 650 Mbps.

The LVDS standard provides a minimum differential output voltagemagnitude of 247mV into a 100 Ohm load and receipt of 100mVsignals with up to 1V of ground potential difference between atransmitter and receiver. The PI90LVB024 doubles the output drivecurrent to achieve Bus LVDS signaling levels with a 50 Ohm load.

The intended application of PI90LV024 and PI90LVB024 is for loop-through andredundant channel switching for both point-to-point base-band(PI90LV024) and multipoint (PI90LVB024) data transmissions overcontrolled impedance media. The package pin assignments enableseasy routing for applications requiring signal feedback.
