Features: ` Signaling Rates >400Mbps (200 MHz)
` Single 3.3V Power Supply Design
` 350mV Differential Swing
` Maximum Differential Skew of 0.4ns
` Maximum Propagation Delay of 2.0ns
` Maximum Power Dissipation: 25mW@ 200 MHz/driver
` Low Voltage TTL (LVTTL) Inputs
` Industrial Temperature Operating Range:-40°C to 85°C
` Package Options Available: SOIC, TSSOP,MSOP
` Meets or Exceeds IEEE 1596.3SCI LVDS Standard
` Meets or Exceeds ANSI/TIA/EIA-644LVDS StandardApplicationApplications include point-to-point and multidrop baseband data transmission over controlled imped-ance media of approximately 100 Ohms. The transmis-sion media can be printed circuit board traces,backplanes, or cables.
The PI90LV031A, PI90LV027A, PI90LV017A and com-panion line receivers (PI90LV032A, PI90LV028A, and PI90LV018A) provide new alternatives to RS-232, PECL, and ECL devices for high-speed, point-to-point interface applications.

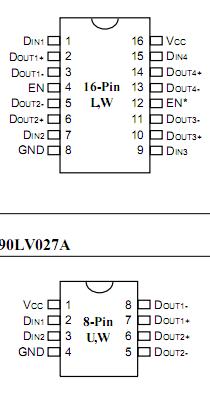

Pinout
SpecificationsSupply Voltage (VCC) ........................................ -0.3V to +4.0V
Input Voltage (DIN) ................................. -0.3V to (VCC +0.3V)
Enable Input Voltage (EN, EN*) .............. -0.3V to (VCC +0.3V)
Output Voltage (DOUT+, DOUT-) ........................-0.3V to +3.9V
Short Circuit Duration
(DOUT+, DOUT-) ..................................................... Continuous
S Package .................................................................... 750mW
Derate S Package ............................8.5mW/°C above +25°C
Storage Temperature Range .......................-65°C to +150°C
Lead Temperature Range Soldering (4s) ................... +260°C
Maximum Junction Temperature .................................+150°C
ESD Rating ......................................................................6kV
Note:
Stresses greater than those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
DescriptionThe PI90LV031A, PI90LV027A, and PI90LV017A are differential line drivers that use low-voltage differential signaling (LVDS) to support data rates in excess of 400 Mbps. These products are designed for applications requiring high-speed, low-power consumption and low noise generation.
A low voltage TTL/CMOS input level is translated by the PI90LV031A, PI90LV027A, and PI90LV017A into a low-voltage (350mV) differential out- put signal. Exclusive to the PI90LV031A quad driver is a power-down mode that Tri-states the outputs and places the device in a low-power idle state (13mW typical).
PI90LV017A Data Sheet
