PI74VCX16244

Features: • The PI74VCX Family is designed for low voltage operation, CD = 1.8V to 3.6V• 3.6V Tolerant Inputs and Outputs• Supports Live Insertion• Balanced Drive, ±24mA• Uses patented Noise Reduction Circuitry• Typical VOLP (Output Ground Bounce) <0.6V at VD...

product image

PI74VCX16244 Picture
See larger image
SeekIC No. : 004461439 Detail

PI74VCX16244: Features: • The PI74VCX Family is designed for low voltage operation, CD = 1.8V to 3.6V• 3.6V Tolerant Inputs and Outputs• Supports Live Insertion• Balanced Drive, ±24mA̶...

PI74VCX16244 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PI74VCX16244
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• The PI74VCX Family is designed for low voltage operation, CD = 1.8V to 3.6V
• 3.6V Tolerant Inputs and Outputs
• Supports Live Insertion
• Balanced Drive, ±24mA
• Uses patented Noise Reduction Circuitry
• Typical VOLP (Output Ground Bounce) <0.6V at VDD = 2.5V, TA = 25ºC
• Typical VOHV (Output VOH Undershoot) < -0.6V at VDD = 2.5V, TA = 25ºC
• Power-Off high impedance inputs and outputs
• Industrial operation at 40°C to +85°C
• Packaging (Pb-free & Green available):
  48-pin 240-mil wide plastic TSSOP (A)


Pinout

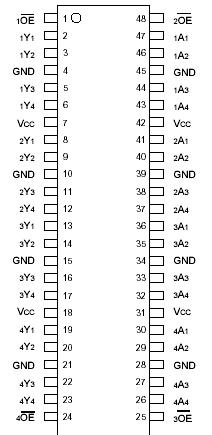

Connection Diagram


Specifications

Supply Voltage Range, VDD ...........................................0.5V to 4.6V
Input Voltage Range, VI .............................................. -0.5V to 4.6V
Output Voltage Range, VO (3-Stated) ......................... -0.5V to 4.6V
Output Voltage Range, VO(1) (Active) ................... -0.5V to VCC+0.5
DC Input Diode Current (IIK) VI<0V ...................................... -50mA
DC Output Diode Current (IOK)
VO<0V .................................................................................. -50mA
VO>VDD ............................................................................... +50mA
DC Output Source/Sink Current (IOH/IOL) ............................ ±50mA
DC VDD or GND Current per Supply Pin (ICC or GND) ........ ±100mA
Storage Temperature Range, Tstg ...................... 65°C to 150°C


Description

Pericom Semiconductor's PI74VCX16244 buffer/driver is designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.

The PI74VCX16244 can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. It provides true outputs and symmetrical active-low output-enable (OE) inputs.

To ensure the high-impedance state during power up or power down, OE should be tied to Vcc through a pullup resistor; the minimum value of the resistor PI74VCX16244 is determined by the current-sinking capability of the driver.

The PI74VCX family is I/O Tolerant, allowing it to operate in 1.8/3.6V systems.
