Features:

• 4.5V to 5.5V on A-port and 2.7V to 3.6V on B-port
• Latch-up performance exceeds 200mA Per JESD78
• ESD protection exceeds JESD 22
  - 2000V Human-Body Model (A114-B)
  - 200V Machine Model (A115-A)
• Industrial Temperature: 40°C to +85°C
• Available Packages:
  - 24-pin 173-mil wide plastic TSSOP (L)
  - 24-pin 150-mil wide plastic QSOP (Q)
  - 24-pin 300-mil wide plastic SOIC (S)


Pinout

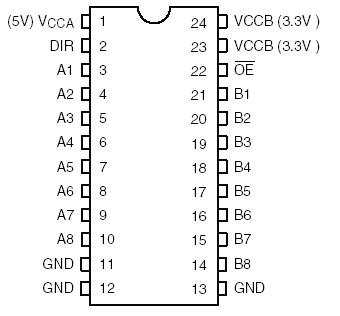

Connection Diagram


Specifications

Supply voltage range, VCCA and VCCB .................................. 0.5V to +7V
Input voltage range, VI (2) : I/O ports (A-port) ...........0.5V to VCCA +0.5V
                                             I/O ports (B-port) ........... 0.5V to VCCB+0.5V
                                             Control Pins ...................0.5V to VCCA +0.5V
Input clamp current, IIK (VI <0).........................................................50mA
Output clamp current, IOK (VO <0).....................................................50mA
Continous Output Current IO ............................................................±50mA
Continous Current through each VCC or GND pin .............................±100mA
Package thermal impedance, JA(3): package L.............................. 84°C/W
                                                          package Q.............................. 98°C/W
                                                          package S ............................ 79°C/W
Storage Temperature range, Tstg ....................................65°C to 150°C


Description

Pericom Semiconductor's PI74LVC series of logic circuits are produced using the Company's advanced submicron CMOS technology, achieving industry leading speed.
The PI74LVC4245A is a non-inverting 8-bit Bidirectional Transceiver that uses two separate power supply rails. A-port (VCCA) is set to operate at 5V and B-port (VCCB) is set to operate at 3.3V.

This allows for translation from a 3.3V to a 5Venvironment and vice-versa. This tranceiver is designed for asynchronous two-way communication between data buses. The direction control input pin (DIR) determines the dataflow from the A bus to the B bus or from the B bus to the A bus. The output of PI74LVC4245A enable (OE) input, when HIGH, disables both A and B ports by placing them in HIGH Z condition.
