PI74LVC3245A

Features: • 2.7V to 3.6V on A-port and 4.5V to 5.5V on B-port• TTL Compatible Inputs• Latch-up performance exceeds 200mA Per JESD78• ESD protection exceeds JESD22 2000V Human-Body Model (A114-B) 200V Machine Model (A115-A)• Industrial Temperature: 40°C to +85°C•...

product image

PI74LVC3245A Picture
See larger image
SeekIC No. : 004461420 Detail

PI74LVC3245A: Features: • 2.7V to 3.6V on A-port and 4.5V to 5.5V on B-port• TTL Compatible Inputs• Latch-up performance exceeds 200mA Per JESD78• ESD protection exceeds JESD22 2000V Human...

PI74LVC3245A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PI74LVC3245A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 2.7V to 3.6V on A-port and 4.5V to 5.5V on B-port
• TTL Compatible Inputs
• Latch-up performance exceeds 200mA Per JESD78
• ESD protection exceeds JESD22 2000V Human-Body Model (A114-B) 200V Machine Model (A115-A)
• Industrial Temperature: 40°C to +85°C
• Available Packages: 24-pin 173-mil wide plastic TSSOP (L) 24-pin 150-mil wide plastic QSOP (Q) 24-pin 300-mil wide plastic SOIC (S)


Pinout

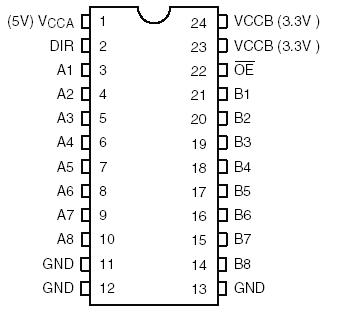

Connection Diagram


Specifications

Supply voltage range, VCCA and VCCB ..................................... 0.5V to +7V
Input voltage range, VI (2) : I/O ports (A-port) ............0.5V to VCCA +0.5V
                                              I/O ports (B-port) ........... 0.5V to VCCB+0.5V
                                              Control Pins ...................0.5V to VCCA +0.5V
Input clamp current, IIK (VI <0)..........................................................50mA
Output clamp current, IOK (VO <0).....................................................50mA
Continous Output Current IO ...........................................................±50mA
Continous Current through each VCC or GND pin ..........................±100mA
Package thermal impedance, JA (3): package L.......................... 84°C/W
                                                          package Q........................... 98°C/W
                                                           package S ........................ 79°C/W
Storage Temperature range, Tstg ..................................65°C to 150°C
Stresses greater than those listed under MAXIMUM RATINGS may cause
permanent damage to the device. This is a stress rating only and functional
operation of the device at these or any other conditions above those
indicated in the operational sections of this specification is not implied.
Exposure to absolute maximum rating conditions for extended periods
may affect reliability.
2. This value is limited to 7V maximum.
3. The package thermal impedance is calculated in accordance with JESD 51.


Description

Pericom Semiconductor's PI74LVC series of logic circuits are produced using the Company's advanced submicron CMOS technology, achieving industry leading speed.

The PI74LVC3245A is a non-inverting 8-bit Bidirectional Transceiver that uses two seperate power supply rails. A-port (VCCA) is set to operate at 3.3V and B-port (VCCB) is set to operate at 5V. PI74LVC3245A allows for translation from a 3.3V to a 5Venvironment and vice-versa. This tranceiver is designed for asynchronous two-way communication between data buses. The direction control input pin (DIR) determines the dataflow from the A bus to the B bus or from the B bus to the A bus. The output of PI74LVC3245A enable (OE) input, when HIGH, disables both A and B ports by placing them in HIGH Z condition.
