PI74LPT16373

Features:

• Compatible with LCX™ and LVT™ families of products
• Supports 5V Tolerant Mixed Signal Mode Operation Input can be 3V or 5V Output can be 3V or connected to 5V bus
• Advanced Low Power CMOS Operation
• Excellent output drive capability: Balanced drives (24 mA sink and source)
• Pin compatible with industry standard double-density pinouts
• Low ground bounce outputs
• Hysteresis on all inputs
• Industrial operating temperature range: 40 to +85
• Multiple center pins and distributed V_cc/GND pins minimize switching noise
• Packaging: 48-pin 240-mil wide thin plastic TSSOP (A) 48-pin 300-mil wide plastic SSOP (V)

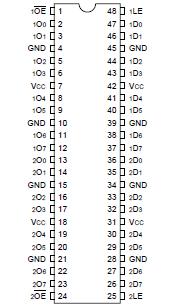

Pinout




Specifications

Storage Temperature ........................................................... 55to +125
Ambient Temperature with Power Applied ............................ 40 to +85
Supply Voltage to Ground Potential (Inputs & V_CC Only)...... 0.5V to +7.0V
Supply Voltage to Ground Potential (Outputs & D/O Only) ...0.5V to +7.0V
DC Input Voltage ................................................................. 0.5V to +7.0V
DC Output Current............................................................................ 120 mA
Power Dissipation ................................................................................ 1.0W

Note:
Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.


Description

Pericom Semiconductor's PI74LPT16373 is a 16-bit transparent latch designed with 3-state outputs and are intended for bus oriented applications. The Output Enable and Latch Enable controls are organized to operate as two 8-bit latches or one 16-bit latch. When Latch Enable (LE) is HIGH, the flip-flops appear transparent to the data. The data of PI74LPT16373 that meets the set-up time when LE is LOW is latched. When OEis HIGH, the bus output is in the high impedance state.

The PI74LPT16373 can be driven from either 3.3V or 5.0V devices allowing this device to be used as a translator in a mixed 3.3/5.0V system.
