Product Details

Description



Features:

• Compatible with LVT™ and FCT3 families of products
• 5V Tolerant inputs and outputs
• 2.0V - 3.6V VCC supply operation
• Balanced sink and source output drives (±24mA)
• Low ground bounce outputs
• Power Down High Impedance inputs and outputs
• Supports live insertion
• Hysteresis on all inputs
• ESD protection exceeds -
   2000V, Human Body Mode
   200V, Machine Mode
• Packages:
   20-pin 173 mil -wide plastic TSSOP (L)
   20-pin 150 mil- wide plastic QSOP (Q)
   20-pin 300 mil -wide plastic SOIC (S)

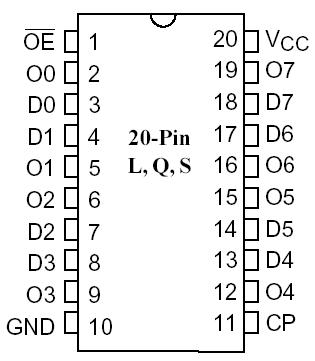

Pinout

Connection Diagram


Specifications

Storage Temperature .................................................... 65°C to +150°C
Ambient Temperature with Power Applied ....................... 40°C to +85°C
Supply Voltage to Ground Potential (Inputs & VCC Only) ..... 0.5V to +7.0V
Supply Voltage to Ground Potential (Outputs & D/O Only) ... 0.5V to +7.0V
DC Input Voltage ................................................................. 0.5V to +7.0V
DC Output Current .............................................................................120mA
Power Dissipation ............................................................................... 1.0W


Description

Pericom Semiconductor's PI74LCX series of logic circuits are produced using the Company's advanced 0.6 CMOS technology, achieving industry leading speed grades.

The PI74LCX374 is an 8-bit wide octal D-type flip flop designed with a buffered common clock and buffered 3-state outputs. When output enable (OE) is LOW, the outputs are enabled. When OE is HIGH, the outputs are in the high impedance state.

Input data of PI74LCX374 meeting the setup and hold time requirements of the D inputs is transferred to the O outputs on the LOW-to-HIGH transition of the clock input. The PI74LCX374 can be driven from either 3.3V or 5.0V devices allowing for the PI74LCX374 to be used as a translator in a mixed 3.3V/5.0V system.
