PI74LCX16374

Storage Temperature ..................................................... - 65°C to +150°C
Ambient Temperature with Power Applied ....................... - 40°C to +85°C
Supply Voltage to Ground Potential (Inputs & Vcc Only)........ - 0.5V to +7.0V
Supply Voltage to Ground Potential (Outputs & D/O Only) .... - 0.5V to +7.0V
DC Input Voltage .................................................................. - 0.5V to +7.0V
DC Output Current ........................................................................... 120 mA
Power Dissipation ................................................................................ 1.0W

Note:
Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

Pericom Semiconductor's PI74LCX series of logic circuits are produced using the Company's advanced 0.6 micron CMOS technology, achieving industry leading speed grades.

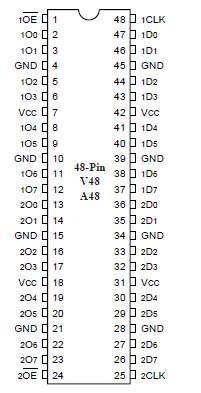

The PI74LCX16374 is a 16-bit octal register designed with 16 D-type flip-flops with a buffered common clock and 3-state outputs. The Output Enable (xOE) and clock (xCLK) controls are organized to operate as two 8-bit registers or one 16-bit register. When OE is HIGH, the outputs are in the high impedance state. Input data of PI74LCX16374 meeting the setup and hold time requirements of the D inputs is transferred to the O outputs on the LOW-to-HIGH transition of the clock input.

The PI74LCX16374 can be driven from either 3.3V or 5.0V devices allowing this device to be used as a translator in a mixed 3.3/5.0V system.
