PI74LCX16373

Storage Temperature ................................................. 65°C to +150°C
Ambient Temperature with Power Applied .....................40°C to +85°C
Supply Voltage to Ground Potential (Inputs & Vcc Only) ....0.5V to +7.0V
Supply Voltage to Ground Potential (Outputs & D/O Only) .0.5V to +7.0V
DC Input Voltage ............................................................... 0.5V to +7.0V
DC Output Current .......................................................................... 120mA
Power Dissipation ............................................................................... 1.0W

Note:
Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device.This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

Pericom Semiconductor's PI74LCX series of logic circuits are produced using the Company's advanced 0.6 micron CMOS technology, achieving industry leading speed grades.

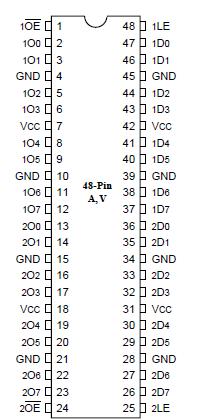

The PI74LCX16373 is a 16-bit transparent latch designed with 3-state outputs and are intended for bus oriented applications. The Output Enable and Latch Enable controls are organized to operate as two 8-bit latches or one 16-bit latch. When Latch Enable (LE) is HIGH, the flip-flops appear transparent to the data. The data of PI74LCX16373 that meets the set-up time when LE is LOW is latched. When OE is HIGH,the bus output is in the high impedance state.

The PI74LCX16373 can be driven from either 3.3V or 5.0V devices allowing this device to be used as a translator in a mixed 3.3/5.0V system.
