PI74LCX16240

Storage Temperature ............................................... 65°C to +150°C
Ambient Temperature with Power Applied .................. 40°C to +85°C
Supply Voltage to Ground Potential (Inputs & Vcc Only) ...0.5V to +7.0V
Supply Voltage to Ground Potential (Outputs & D/O Only) 0.5V to +7.0V
DC Input Voltage ..............................................................0.5V to +7.0V
DC Output Current ....................................................................... 120 mA
Power Dissipation ............................................................................ 1.0W

Note:
Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

Pericom Semiconductor's PI74LCX series of logic circuits are produced in the Company's advanced 0.6 micron CMOS technology, achieving industry leading speed grades.

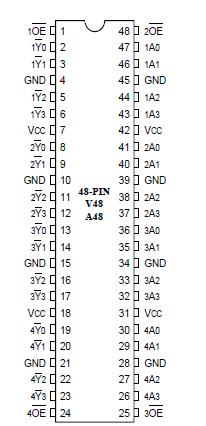

The PI74LCX16240 is an inverting 16-bit buffer/line driver designed for applications driving high-capacitance loads and low impedance backplanes. This high-speed, low power device offers bus/backplane interface capability and a flow-through organization for ease of board layout. PI74LCX16240 is designed with three-state controls to operate in a Quad-Nibble, Dual-Byte, or a single 16-bit word mode.

The PI74LCX16240 can be driven from either 3.3V or 5.0V devices allowing this device to be used as a translator in a mixed 3.3V/5.0V system.
