PI74FCT16374T

Storage Temperature .................................................................... 65°C to +150°C
Ambient Temperature with Power Applied .................................... 40°C to +85°C
Supply Voltage to Ground Potential (Inputs & Vcc Only) .............. 0.5V to +7.0V
Supply Voltage to Ground Potential (Outputs & D/O Only) ........... 0.5V to +7.0V
DC Input Voltage ............................................................................ 0.5V to +7.0V
DC Output Current ..................................................................................... 120 mA
Power Dissipation ..........................................................................................1.0W

Note:
Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

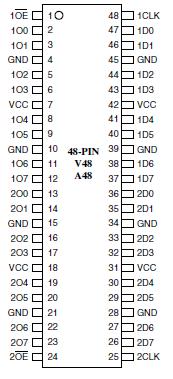

Pericom Semiconductor's PI74FCT series of logic circuits are produced in the Company's advanced 0.6 micron CMOS technology, achieving industry leading speed grades.

The PI74FCT16374T, PI74FCT162374T, and PI74FCT162H374T are 16-bit octal registers designed with 16 D-type flip-flops with a buffered common clock and 3-state outputs. The Output Enable (xOE) and clock (xCLK) controls are organized to operate as two 8-bit registers or one 16-bit register. When OE is HIGH, the outputs are in the high impedance state. Input data meeting the setup and hold time requirements of the D inputs is transferred to the O outputs on the LOW-to-HIGH transition of the clock input. The PI74FCT16374T output buffers are designed with a Power-Off disable allowing "live insertion" of boards when used as backplane drivers.

The PI74FCT162374T has ±24 mA balanced output drivers. PI74FCT16374T, PI74FCT162374T, and PI74FCT162H374T are designed with current limiting resistors at its outputs to control the output edge rate resulting in lower ground bounce and undershoot. This eliminates the need for external terminating resistors for most interface applications.

The PI74FCT162H374T has "Bus Hold" which retains the input's last state whenever the input goes to high-impedance preventing "floating" inputs and eliminating the need for pull-up/down resistors.
