PI74FCT16373T

Storage Temperature .................................................................... 65°C to +150°C
Ambient Temperature with Power Applied .................................... 40°C to +85°C
Supply Voltage to Ground Potential (Inputs & Vcc Only) .............. 0.5V to +7.0V
Supply Voltage to Ground Potential (Outputs & D/O Only) ........... 0.5V to +7.0V
DC Input Voltage ............................................................................ 0.5V to +7.0V
DC Output Current ..................................................................................... 120 mA
Power Dissipation ..........................................................................................1.0W

Note:
Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

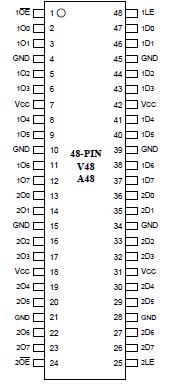

Pericom Semiconductor's PI74FCT series of logic circuits are produced in the Company's advanced 0.6 micron CMOS technology, achieving industry leading speed grades.

The PI74FCT16373T, PI74FCT162373T, and PI74FCT162H373T are 16-bit transparent latches designed with 3-state outputs and are intended for bus oriented applications. The Output Enable and Latch Enable controls are organized to operate as two 8-bit latches or one 16-bit latch. When Latch Enable (LE) is HIGH, the flip-flops appear transparent to the data. The data of PI74FCT16373T, PI74FCT162373T, and PI74FCT162H373T that meets the set-up time when LE is LOW is latched. When OE is HIGH, the bus output is in the high impedance state.

The PI74FCT16373T output buffers are designed with a Power- Off disable allowing "live insertion" of boards when used as backplane drivers.

The PI74FCT162373T has ±24 mA balanced output drivers. It is designed with current limiting resistors at its outputs to control the output edge rate resulting in lower ground bounce and undershoot. This eliminates the need for external terminating resistors for most interface applications.

The PI74FCT162H373T has "Bus Hold" which retains the input's last state whenever the input goes to high-impedance preventing "floating" inputs and eliminating the need for pull-up/down resistors.
