PI74FCT163245

Features: • Advanced Low Power CMOS Operation• Excellent output drive capability: Balanced drives (24mA sink and source) Compatible with LVCTM class of products.• Pin compatible with industry standard double-density pinouts• Low ground bounce outputs• Hysteresis on al...

product image

PI74FCT163245 Picture
See larger image
SeekIC No. : 004461320 Detail

PI74FCT163245: Features: • Advanced Low Power CMOS Operation• Excellent output drive capability: Balanced drives (24mA sink and source) Compatible with LVCTM class of products.• Pin compatible wi...

PI74FCT163245 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PI74FCT163245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Advanced Low Power CMOS Operation
• Excellent output drive capability: Balanced drives (24mA sink and source) Compatible with LVCTM class of products.
• Pin compatible with industry standard double-density pinouts
• Low ground bounce outputs
• Hysteresis on all inputs
• Industrial operating temperature range: 40°C to +85°C
• Control inputs can be driven by 3.3V or 5V devices
• Multiple center pin and distributed Vcc/GND pins minimizing switching noise
• Packages available: 48-pin 240 mil wide plastic TSSOP (A) 48-pin 300 mil wide plastic SSOP (V) 48-pin 173 mil wide plastic TVSOP (K)
• Device models available on request


Pinout

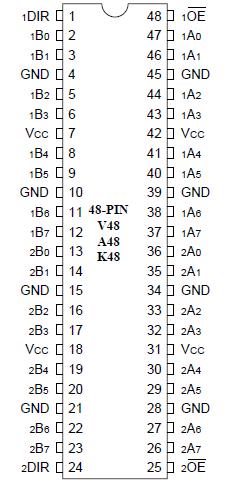

Connection Diagram


Specifications

Storage Temperature ................................................................. 65°C to +150°C
Ambient Temperature with Power Applied ................................ 40°C to +85°C
Supply Voltage to Ground Potential (Inputs & Vcc Only) .......... 0.5V to +7.0V
Supply Voltage to Ground Potential (Outputs & D/O Only) ....... 0.5V to +7.0V
DC Input Voltage ......................................................................... 0.5V to +7.0V
DC Output Current ................................................................................... 120 mA
Power Dissipation ......................................................................................... 1.0W

Note:
Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.


Description

Pericom Semiconductor's PI74FCT series of logic circuits are produced in the Company's advanced 0.6 micron CMOS technology, achieving industry leading speed grades.

The PI74FCT163245 is a 16-bit bidirectional transceiver designed for asynchronous two-way communication between data buses. The direction control input pin (xDIR) determines the direction of data flow through the bidirectional transceiver. The Direction and Output Enable controls are designed to operate PI74FCT163245 as either two independent 8-bit transceivers or one 16-bit transceiver. The output enable (xOE) input, when HIGH, disables both A and B ports by placing them in HIGH Z condition.
