PI74FCT16244T

Storage Temperature ................................................................. 55°C to +125°C
Ambient Temperature with Power Applied ................................ 40°C to +85°C
Supply Voltage to Ground Potential (Inputs & Vcc Only) .......... 0.5V to +7.0V
Supply Voltage to Ground Potential (Outputs & D/O Only) ....... 0.5V to +7.0V
DC Input Voltage ......................................................................... 0.5V to +7.0V
DC Output Current ................................................................................... 120 mA
Power Dissipation ......................................................................................... 1.0W

Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

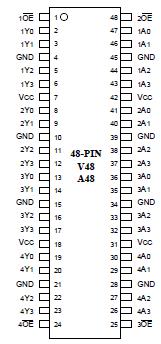

Pericom Semiconductor's PI74FCT series of logic circuits are produced in the Company's advanced 0.6 micron CMOS technology, achieving industry leading speed grades.

The PI74FCT16244T, PI74FCT162244T, and PI74FCT162H244T are non-inverting 16-bit buffer/line drivers designed for applications driving high capacitance loads and low impedance backplanes.

These high-speed, low power devices offer bus/backplane interface capability and a flow-through organization for ease of board layout.

PI74FCT16244T, PI74FCT162244T, and PI74FCT162H244T are designed with three-state controls to operate in a Quad-Nibble, Dual-Byte, or a single 16-bit word mode.

The PI74FCT16244T output buffers are designed with a Power-Off disable allowing "live insertion" of boards when used as backplane drivers.

The PI74FCT162244T has ±24 mA balanced output drivers. It is designed with current limiting resistors at its outputs to control the output edge rate resulting in lower ground bounce and undershoot.

This eliminates the need for external terminating resistors for most interface applications.

The PI74FCT162H244T has "Bus Hold" which retains the input's last state whenever the input goes to high-impedance preventing "floating" inputs and eliminating the need for pull-up/down resistors.
