PI74FCT151T

Storage Temperature .................................................................... 65°C to +150°C
Ambient Temperature with Power Applied .....................................-40°C to +85°C
Supply Voltage to Ground Potential (Inputs & Vcc Only) .............. 0.5V to +7.0V
Supply Voltage to Ground Potential (Outputs & D/O Only) ........... 0.5V to +7.0V
DC Input Voltage ............................................................................ 0.5V to +7.0V
DC Output Current ..................................................................................... 120 mA
Power Dissipation ..........................................................................................0.5W

Note:
Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.

Pericom Semiconductor's PI74FCT series of logic circuits are produced in the Company's advanced 0.8 micron CMOS technology, achieving industry leading speed grades.

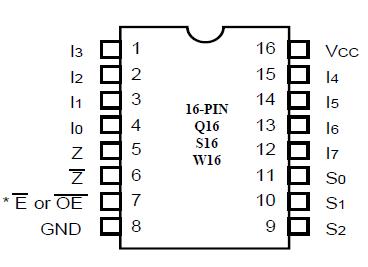

The PI74FCT151T, PI74FCT251T, and PI74FCT2151T are highspeed 8-input multiplexers. They select one bit from a source of eight under the control of three select inputs. Both assertion and negation outputs are provided.

The PI74FCT151/2151T has a common, active-LOW, Enable input (E). When E is LOW, data from one of eight inputs is directed to the complementary outputs based on the 3-bit code applied to the Select (S0-S2) inputs. The PI74FCT151/2151T can be used as a data routing device from one of eight sources.

The PI74FCT251T has a common Active-LOW Output Enable (OE) input. When OE is LOW, data from one of eight inputs is directed to the complementary outputs. When OE is HIGH, both outputs of PI74FCT151T, PI74FCT251T, and PI74FCT2151T are switched to a high-impedance state allowing multiplexer expansion by tying several outputs together.
