PI6CVF857

Features:

• PLL clock distribution optimized for DDR2 SDRAM applications.
• Distributes one differential clock input pair to ten differential clock output pairs.
• Differential Inputs (CLK, CLK) and (FBIN, FBINFBIN)
• Input OE/OS: LVCMOS
• Differential Outputs (Y[0:9], Y[0:9] and (FBOUT, FBOUT)
• External feedback pins (FBIN, FBIN) are used tosynchronize the outputs to the clock input.
• Operates at 2.5V for PC1600, PC2100, PC2700, and 2.6V for PC3200
• Packaging (Pb-free & Green available, select packages): 48-pin TSSOP 40-pin TQFN 56-ball VFBGA

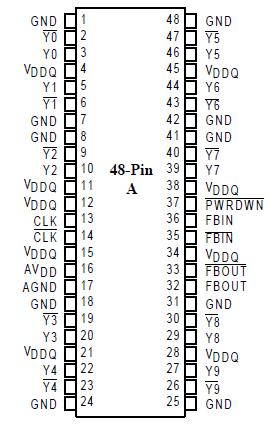

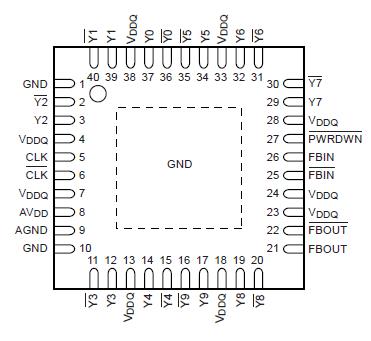

Pinout






Specifications

Symbol	Parameter	Min.	Max.	Units
VDD.AVDD	I/O supply voltage range and analog/core supply voltage range	-0.5	3.6	V
VI	Input Voltage	-0.5	VCC + 0.5
VO	Output Voltage	-0.5
IIK	Storage Temperature	-50	50	mA
IOK	Ambient Temperature	-50	50
IO	Continuous output Current	-50	50
IO(PWP)	Continuous current through each AVDD, VDDQ, or GND	-100	100
TSTG	Storage temperature	-65	150
JA	Junction to ambient thermal (package A)		104	W
JC	Junction to case thermal (package A)		38	W

Note: Stress beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device.

Product Specs: Voltage: 2.5V Function: Zero-Delay Buffer Jitter: 50ps Skew: 75ps Speed: 220MHz I/O: SSTL2 Temp: Com Outputs: 10 Pins: 48 Packages: TSSOP (A48) Pb-Free and Green: Yes - more info RoHS Material Declarations: PI6CVF857AE MDR (pdf)PI6CVF857ZDE MDR (pdf)




Description

PI6CU877 PLL clock driver is developed for Registered DDR2 DIMM applications with 1.8V operation and differential data input and output levels.

The PI6CU877 is a zero delay buffer that distributes a differential clock input pair (CLK, CLK) to eleven differential pairs of clock outputs which includes feedback clock (Y[0:9], Y[0:9]; FBOUT, FBOUT).

The clock outputs of PI6CU877 are controlled by CLK/CLK, FBOUT, FBOUT, the LVCMOS (OE, OS) and the Analog Power input (AVDD). When OE is LOW the outputs except FBOUT, FBOUT, are disabled while the internal PLL continues to maintain its locked-in frequency. OS is a program pin that must be tied to GND or VDD. When OS is high, OE will function as described above. When OS is LOW, OE has no effect on Y7/Y7, PI6CU877 is free running. When AVDD is grounded, the PLL is turned off and bypassed for test purposes.

When CLK/CLK are logic low, the PI6CU877 will enter a low power mode. An input logic detection circuit will detect the logic low level and perform a low power state where all Y[0:9], Y[0:9]; FBOUT, FBOUT, and PLL are OFF.

PI6CU877 is a high performance, low skew, and low jitter PLL clock driver, and it is also able to track Spread Spectrum Clocking (SSC) for reduced EMI.

PI6CU877 2.5V/2.6V, 220 MHz, 10 Output SSTL-2 Clock Driver for DDR DIMM
