PI6C3Q993

Features:

· PI6C3Q99X family provides following products: PI6C3Q991: 32-pin PLCC version PI6C3Q993: 28-pin QSOP version
· Inputs are 5V I/O Tolerant
· 4 pairs of programmable skew outputs
· Low skew: 200ps same pair; 250ps all outputs
· Selectable positive or negative edge synchronization: Excellent for DSP applications
· Synchronous output enable
· Output frequency: 3.75 MHz to 85 MHz
· 2x, 4x, 1/2, and 1/4 outputs
· 3 skew grades:
· 3-level inputs for skew and PLL range control
· PLL bypass for DC testing
· External feedback, internal loop filter
· 12mA balanced drive outputs
· Low Jitter: < 200ps peak-to-peak
· Industrial temperature range
· Pin-to-pin compatible with IDT QS5V991 and QS5V993
· Available in 32-pin PLCC and 28-pin QSOP

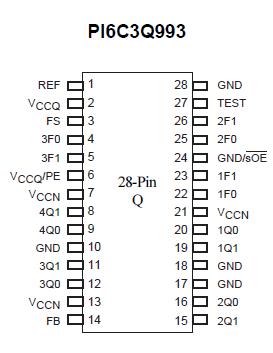

Pinout






Specifications

Product Specs: Voltage: 3.3V Function: Programmable Skew Jitter: 200ps Skew: 750ps Speed: 85MHz I/O: CMOS Temp: Com Outputs: 2+2+2+2 Pins: 28 Packages: QSOP (Q28) Pb-Free and Green: Yes - more info RoHS Material Declarations: Not Available

Supply Voltage to ground ........................................................ 0.5V to 7.0V
DC input Voltage VI .................................................................... 0.5V to VCC + 0.5V
Maximum Power Dissipation at TA = 85°C, PLCC ......................... 0.80 watts
QSOP ....................... 0.66 watts
TSTG Storage temperature ....................................................65°C to 150°C

Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress specifications only and functional operation of the device at these or any other conditions above those listed in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.

Description

PI6C3Q99X 3.3V, Programmable Skew PLL Clock Driver with 750ps Accuracy, Balanced, 3.75 to 85 MHz

The PI6C3Q99X family is a high fanout 3.3V PLL-based clock driver intended for high performance computing and data-communications applications. A key feature of the programmable skew is the ability of outputs to lead or lag the REF input signal. The PI6C3Q991 has 8 programmable skew outputs in 4 banks of 2, while the PI6C3Q993 has 6 programmable skew outputs and 2 zero skew outputs. Skew is controlled by 3-level input signals that may be hardwired to appropriate HIGH-MID-LOW levels.

When the GND/sOE pin is held low, all the outputs are synchronously enabled. However, if GND/sOE is held high, all the outputs except 3Q0 and 3Q1 are synchronously disabled. Furthermore, when the V CCQ /PE is held high, all the outputs of PI6C3Q99X family are synchronized with the positive edge of the REF clock input. When VCCQ /PE is held low, all the outputs are synchronized with the negative edge of REF. PI6C3Q99X family have LVTTL outputs with 12mA balanced drive outputs.
