PI6C2504Q

Features: · High-Performance Phase-Locked-Loop Clock Distribution for Networking· Registered DIMM Synchronous DRAM modules for server/workstation/PC applications· Allows Clock Input to have Spread Spectrum modulation for EMI reduction· Zero Input-to-Output delay· Low jitter: Cycle-to-Cycle jitter ...

product image

PI6C2504Q Picture
See larger image
SeekIC No. : 004461170 Detail

PI6C2504Q: Features: · High-Performance Phase-Locked-Loop Clock Distribution for Networking· Registered DIMM Synchronous DRAM modules for server/workstation/PC applications· Allows Clock Input to have Spread S...

PI6C2504Q Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PI6C2504Q
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· High-Performance Phase-Locked-Loop Clock
  Distribution for Networking
· Registered DIMM Synchronous DRAM modules
  for server/workstation/PC applications
· Allows Clock Input to have Spread Spectrum
  modulation for EMI reduction
· Zero Input-to-Output delay
· Low jitter: Cycle-to-Cycle jitter ±100ps max.
· On-chip series damping resistor at clock output
  drivers for low noise and EMI reduction
· Operates at 3.3V VCC
· Wide range of Clock Frequencies up to 80 MHz
· Package: Plastic 16-pin QSOP Package (Q)


Pinout

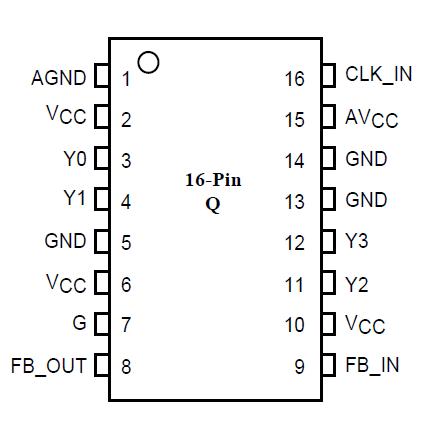

Connection Diagram


Specifications

Symbol Parameter Min. Max. Units
VI Input voltage range –0.5 VCC +0.5 V
VO Output voltage range
IO_DC DC output current   100 MA
Power Maximum power dissipation at TA = 55°C in still air   1.0 W
TSTG Storage temperature -65 150 °C
Note: Stress beyond those listed under “absolute maximum ratings” may cause permanent damage to the device.


Description

The PI6C2504 features a low-skew, low-jitter, phase-locked loop (PLL) clock driver, distributing high-frequency clock signals for SDRAM and server applications. By connecting the feedback FB_OUT output to the feedback FB_IN input, the propagation delay PI6C2504 from the CLK_IN input to any clock output will be nearly zero.
