PI6C2502A

· High-Performance Phase-Locked-Loop Clock Distribution for Networking,
· Synchronous DRAM modules for server/workstation/PC applications
· Allows Clock Input to have Spread Spectrum modulation for EMI reduction
· Zero Input-to-Output delay
· Low jitter: Cycle-to-Cycle jitter ±75ps max.
· On-chip series damping resistor at clock output drivers for low noise and EMI reduction
· Operates at 3.3V VCC
· Wide range of Clock Frequencies 80 to 134 MHz

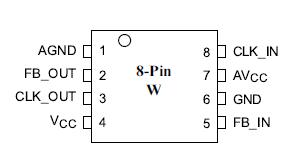

· Package: Plastic 8-pin SOIC Package (W)

If a system designer needs more than 16 outputs with the features just described, using two or more zero-delay buffers such as PI6C2509Q, and PI6C2510Q, is likely to be impractical. The device-to-device skew introduced can significantly reduce the performance. Pericom recommends the use of a zero-delay buffer and an eighteen output non-zero-delay buffer. As shown in Figure 1, this combination produces a zero-delay buffer with all the signal characteristics of the original zero-delay buffer, but with as many outputs as the non-zero-delay buffer part. For example, when combined with an eighteen output non-zero delay buffer, a system designer can create a seventeen-output zero-delay buffer.

The PI6C2502A features a low-skew, low-jitter, phase-locked loop(PLL) clock driver. By connecting the feedback FB_OUT output to the feedback FB_IN input, the propagation delay from the CLK_IN input to any clock output will be nearly zero.
