PI6C2502

Features:

· High-Performance Phase-Locked-Loop Clock Distribution for Networking,
· Synchronous DRAM modules for server/workstation/ PC applications
· Allows Clock Input to have Spread Spectrum modulation for EMI reduction
· Zero Input-to-Output delay
· Low jitter: Cycle-to-Cycle jitter ±100ps max.
· On-chip series damping resistor at clock output drivers for low noise and EMI reduction
· Operates at 3.3V VCC
· Wide range of Clock Frequencies up to 80 MHz
· Package: Plastic 8-pin SOIC Package (W)




Application

If a system designer needs more than 16 outputs with the features just described, using two or more zero-delay buffers such as PI6C2509Q, and PI6C2510Q, is likely to be impractical. The device-to-device skew introduced can significantly reduce the performance. Pericom recommends the use of a zero-delay buffer and an eighteen output non-zero-delay buffer. As shown in Figure 1, this combination produces a zero-delay buffer with all the signal characteristics of the original zero-delay buffer, but with as many outputs as the non-zero-delay buffer part. For example, when combined with an eighteen output non-zero delay buffer, a system designer can create a seventeen-output zero-delay buffer.

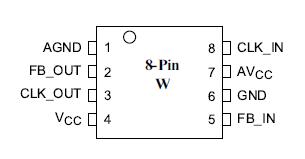

Pinout






Specifications

Symbol	Parameter	Min.	Max.	Units
VI	Input voltage range	-0.5	VCC + 0.5	V
VO	Output voltage range
IO_DC	DC output current		100	mA
Power	Maximum power dissipation at TA= 55 in still air		1.0	W
TSTG	Storage temperature	-65	150

Note:
1. Stress beyond those listed under "absolute maximum ratings" may cause permanent damage to the device.

Product Specs: Voltage: 3.3V Function: Zero-Delay Buffer Jitter: 100ps Skew: - Speed: 80MHz I/O: CMOS Temp: Com Outputs: 1 Pins: 8 Packages: SOIC (W8) Pb-Free and Green: No - more info RoHS Material Declarations: PI6C2502AWE MDR (pdf)PI6C2502WE MDR (pdf)




Description

The PI6C2502 features a low-skew, low-jitter, phase-locked loop (PLL) clock driver. By connecting the feedback FB_OUT output to the feedback FB_IN input, the propagation delay from the CLK_IN input to any clock output will be nearly zero.

3.3V, 25 to 80 MHz, 1 Output Zero-Delay Clock Driver with Feedback Output
