PI6C2410

Features:

• Four synchronous outputs
• Selectable divider/multiplier
• Output Enable control
• Low phase error < 150 ps
• Allows clock input to have spread spectrum modulation for EMI reduction
• Low output skew < 200 ps
• Low cycle jitter < 200 ps
• Industrial temperature (40°C to 85°C)
• 3.3V supply
• Packages (Pb-free and Green available): 24-pin QSOP (Q) 24-pin TSSOP (L)

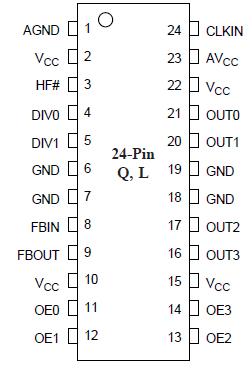

Pinout






Specifications

Product Specs: Voltage: 3.3V Function: Zero-Delay Buffer Jitter: 200ps Skew: 200ps Speed: 133MHz I/O: TTL Temp: Ind Outputs: 4 Pins: 24 Packages: TSSOP (L24)QSOP (Q24) Pb-Free and Green: Yes - L - more info RoHS Material Declarations: PI6C2410LE MDR (pdf)

Supply Voltage (VCC, AVCC) ................................................ 0.5V to +4.6V
Input Voltage ................................................................ 0.5V to Vcc+0.5V
Industrial Operating Temperature ....................................... -40°C to +85°C
Storage Temperature ........................................................ 65°C to +150°C
Junction Temperature ....................................................................... 150°C
Input ESD MIL-883, Method 3015, human body model ....................... 2kV

Description

3.3V, PCIX Clock, 133 MHz, (X2, X3, X4, /2), 4 outputs with Internal Feedback, Industrial Temp. Operation

PI6C2410 is a low skew, low jitter, PLL clock buffer with divider or multiplier designed for PCI-X application in servers and workstations. There are two selectable input ranges using HF# input: 10-40 MHz and 40-80 MHz. All outputs are synchronized to the input and to the other outputs. Each output can be independently turned off to reduce EMI and power consumption.
