PI6C2310

Features: ` Four synchronous outputs` Selectable divider/multiplier` Output Enable control` Low phase error < 150 ps` Allows clock input to have spread spectrum modulation for EMI reduction` Low output skew < 200 ps` Low cycle jitter < 200 ps` Industrial temperature (40° C to 85° C)` 3.3V...

product image

PI6C2310 Picture
See larger image
SeekIC No. : 004461146 Detail

PI6C2310: Features: ` Four synchronous outputs` Selectable divider/multiplier` Output Enable control` Low phase error < 150 ps` Allows clock input to have spread spectrum modulation for EMI reduction` Low ...

PI6C2310 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PI6C2310
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Four synchronous outputs
` Selectable divider/multiplier
` Output Enable control
` Low phase error < 150 ps
` Allows clock input to have spread spectrum modulation for EMI reduction
` Low output skew < 200 ps
` Low cycle jitter < 200 ps
` Industrial temperature (40° C to 85° C)
` 3.3V V supply
` Packages: 24-pin QSOP (Q) and 24-pin TSSOP (L)


Pinout

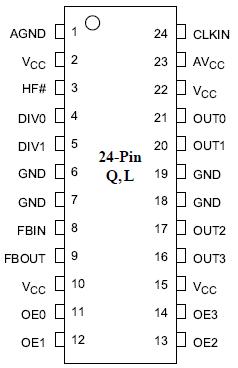

Connection Diagram


Specifications

Supply Voltage (VCC, AVCC) ................................................ 0.5V to +7.0V
Input Voltage ................................................................ 0.5V to Vcc+0.5V
Industrial Operating Temperature ....................................... -40°C to +85°C
Storage Temperature ........................................................ 65°C to +150°C
Junction Temperature ....................................................................... 150°C
Input ESD MIL-883, Method 3015, human body model ....................... 2kV


Description

PI6C2310 is a low skew, low jitter, PLL clock buffer with divider or multiplier designed for PCI-X application in servers and workstations. There are two selectable input ranges using HF# input: 10-40 MHz and 40-80 MHz. All outputs are synchronized to the input and to the other outputs. Each output of PI6C2310 can be independently turned off to reduce EMI and power consumption.
