PI6C2302

· 2X CLK_IN on CLK_OUT
· High-Performance Phase-Locked-Loop Clock Distribution for Networking, ATM, 100/134 MHz Registered DIMM Synchronous DRAM modules for server/workstation/ PC applications
· Zero Input-to-Output delay
· Low jitter: Cycle-to-Cycle jitter ±100ps max.
· On-chip series damping resistor at clock output drivers for low noise and EMI reduction
· Operates at 3.3V VCC
· Wide range of Clock Frequencies

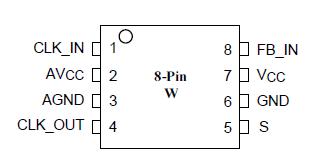

· Package: Plastic 8-pin SOIC Package (W)

If the system designer needs more than 16 outputs with the features just described, using two or more zero-delay buffers such as PI6C2509Q, and PI6C2510Q, is likely to be impractical. The deviceto- device skew introduced can significantly reduce the performance.

Pericom recommends the use of a zero-delay buffer and an eighteen output non-zero-delay buffer. As shown in Figure 1, this combination produces a zero-delay buffer with all the signal characteristics of the original zero-delay buffer, but with as many outputs as the non-zero-delay buffer part. For example, when combined with an eighteen output non-zero delay buffer, a system designer can create a seventeen-output zero-delay buffer.

The PI6C2302 features a low-skew, low-jitter, phase-locked loop (PLL) clock driver. By connecting the feedback CLK_OUT output to the feedback FB_IN input, the propagation delay from the CLK_IN input to any clock output will be nearly zero. The PI6C2302 provides 2X CLK_IN on CLK_OUT output.
