PI6C20800S

Features:

• Phase jitter fi lter for PCIe application
• Eight Pairs of Differential Clocks
• Low skew < 50ps
• Low Cycle-to-cycle jitter < 50ps
• Output Enable for all outputs
• Outputs Tristate control via SMBus
• Power Management Control
• Programmable PLL Bandwidth
• PLL or Fanout operation
• 3.3V Operation
• Packaging (Pb-Free & Green):
- 48-Pin SSOP (V)
- 48-Pin TSSOP (A)

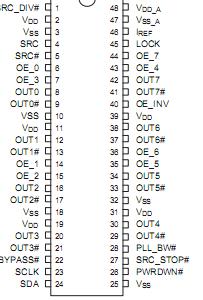

Pinout






Specifications

Product Specs: Voltage: 3.3V Function: Zero-Delay Buffer Jitter: 50ps Skew: 50ps Speed: 95-105MHz I/O: HCSL Temp: Com Outputs: 8 Pins: 48 Packages: TSSOP (A48)SSOP (V48) Pb-Free and Green: Yes - more info RoHS Material Declarations: Not Available

Symbol	Parameters	Min.	Max.	Units
VDD_A	3.3V Core Supply Voltage	-0.5	4.6	V
VDD	3.3V I/O Supply Voltage	-0.5	4.6
VIH	Input HIGH Voltage		4.6
VIL	Input LOW Voltage	-0.5
Ts	Storage Temperature	-65	150
VESD	ESD Protection	2000		V

Note:
1. Stress beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device.




Description
