PI6C184

Features:

• High-speed, low-noise, non-inverting, 1-13 buffer
• Supports up to four SDRAM DIMMs
• Low skew (< 250ps) between any two output clocks
• I²C Serial Configuration interface
• Multiple VDD, VSS pins for noise reduction
• 3.3V power supply voltage
• Separate Hi-Z pin for testing
• Packaging (Pb-free & Green available): - 28-pin SSOP (H)

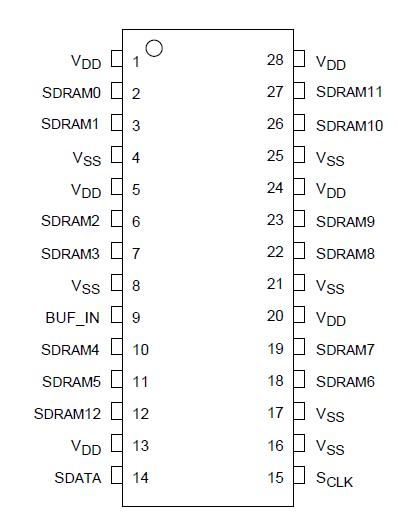

Pinout






Specifications

Product Specs: Voltage: 3.3V Function: Buffer, Driver Jitter: - Skew: 250ps Speed: 100MHz I/O: TTL Temp: Com Outputs: 13 Pins: 28 Packages: SSOP (H28) Pb-Free and Green: Yes - more info RoHS Material Declarations: PI6C184HE MDR (pdf)

Storage Temperature ............................................... 65°C to +150°C
Ambient Temperature with Power Applied ................. 0°C to +70°C
3.3V Supply Voltage to Ground Potential .................. 0.5V to +4.6V
DC Input Voltage ....................................................... 0.5V to +4.6V




Description

PI6C184: 3.3V, 100MHz Desktop PC 1:13 Output Clock Driver (IMI compatible)

The PI6C184 is a high-speed low-noise 1-13 non-inverting buffer designed for SDRAM clock buffer applications.

This PI6C184 buffer is intended to be used with the PI6C104 clock generator for Intel Architecture for both desktop and mobile systems. At power-up, all SDRAM outputs are enabled and active.The I²C Serial control may be used to individually activate/deactivate any of the 13 output drivers.Note:Purchase of I²C components from Pericom conveys a license to use them in an I²C system as defined by Philips®.
