Features: Six low skew outputs: < 80ps
Crystal oscillator input: 10MHz to 40MHz
Switching frequency up to 250 MHz
Fast output rise/fall time: < 800ps
Synchronous output enables
Industrial Temperature range: 40°C to +85°C
1.8V and 2.5V operation

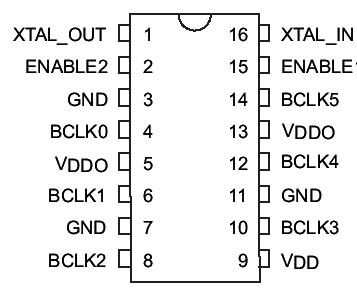

Packaging (Pb-free & Green available): 16-pin 173-mil wide TSSOP (L)Pinout
SpecificationsProduct Specs: Voltage: 1.8V/2.5V Function: Buffer, Driver Jitter: n/a Skew: 80ps Speed: 250MHz I/O: Xtal/LVCMOS Temp: Ind Outputs: 6 Pins: 16 Packages: TSSOP (L16) Pb-Free and Green: Yes - more info RoHS Material Declarations: Not Available
Storage Temperature ....................................................65°C to +150°C
VDD, VDDO Voltage ...........................................................0.5V to +3.6V
Output Voltage (max. 3.6V) ........................................0.5V to VDD+0.5V
Input Voltage (max 3.6V) ........................................... 0.5V to VDD+0.5V
Note:Stresses greater than those listed under MAXIMUM RAT INGS may cause permanent damage to the device. This is a stress rating only and functional op er a tion of the device at these or any other con di tions above those indicated in the operational sec tions of this spec i fi ca tion is not implied. Ex po sure to absolute maximum rating conditions for extended periods may affect reliability.
Description1.8V/2.5V, 250MHz, Low Skew 1:6 Crystal to LVCMOS Clock Buffer. Pericom Semiconductor's PI6C10806 is a low skew six output crystal oscillator driver. Crystal oscillator input range is from 10MHz to 40MHz. If XTAL_IN is driven with a signal source, then the input frequency can be as high as 250MHz. PI6C10806, the outputs are confi gured into 2 groups: a fi ve output and a single output; each with independent output enable.
PI6C10806 has a wide range of operating voltages: 1.8V and 2.5V. This feature paired with the low output-to-output and part-to-part skew makes the device ideal for low voltage, low power, high frequency single ended applications; such as networking
PI6C10806 Data Sheet
