PI6C10804

Features:

High-speed, low-noise, non-inverting 1:4 buffer
Maximum Frequency up to 250 MHz
Low output skew < 150ps
Low propagation delay < 3.0ns
1.8V or 2.5V supply voltage
Packages (Pb-free & Green available): -8-pin SOIC (W)

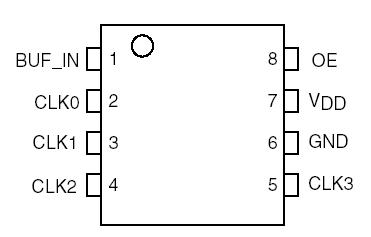

Pinout






Specifications

Storage Temperature ........................................................65°C to +150°C
V_DD Voltage ..........................................................................0.5V to +3.6V
Output Voltage (max. 3.6V) ............................................0.5V to V_DD+0.5V
Input Voltage (max 3.6V) ...............................................0.5V to V_DD+0.5V

Note:Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating condi condi-- tions for extended periods may affect reliability.

Product Specs: Voltage: 1.8V/2.5V Function: Buffer, Driver Jitter: n/a Skew: 70ps Speed: 250MHz I/O: LVTTL/LVCMOS Temp: Ind Outputs: 4 Pins: 8 Packages: SOIC (W8) Pb-Free and Green: Yes - more info RoHS Material Declarations: Not Available




Description

The PI6C10804 is a 1.8V or 2.5V high-speed, low-noise 1:4 non-inverting clock buffer. The key goal in designing the PI6C10804 is to target networking applications that require low- lowskew, low-jitter, and high-frequency clock distribution.

skew, Providing output-to-output skew as low as 150ps, the PI6C10804 is an ideal clock distribution device for synchronous systems. De De-- signing synchronous networking systems requires a tight level of skew from a large number of outputs. 1.8V/2.5V, 250MHz, 1:4 Networking Clock Buffer
