PI5A4626

Voltages Referenced to GND
V+ ..................................................................... 0.5V to +5.5V
VIN, VCOM, VNC, VNO (Note 1) ................ 0.5V to V+ +0.3V
or 30mA, whichever occurs first
Current (any terminal) ..................................................±200mA
Peak Current, COM, NO, NC
(Pulsed at 1ms, 10% duty cycle) ..................................±400mA
SOT-23 (derate 7.1mW/ºC above +70ºC) ............................ 0.5W
Storage Temperature ....................................... 65ºC to +150ºC
Lead Temperature (soldering, 10s) ............................... +300ºC

Note:1. Signals on NC, NO, COM, or IN exceeding V+ or GND are clamped byinternal diodes. Limit forward diode current to 30mA.

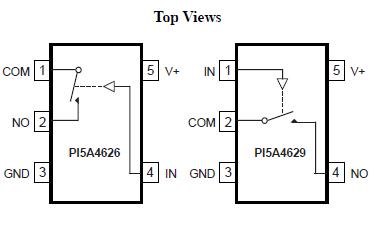

PI5A4626/PI5A4629, single-pole/single-throw (SPST) analogswitches that operate from a single +1.8V to +5.5V supply, arenormally open (NO). The PI5A4629 pinout is optimized for thehighest SOT-23 package off-isolation available.

These PI5A4626 switches have 1-ohm max On-resistance (RON), with 0.12-ohm max RON flatness over the analog signal range when poweredfrom a +5V supply. Leakage currents are 0.5nA and fast switchingtimes are less than 50ns. They are packaged in a compact 5-pinSOT-23 package.
