PI5A125

Features: • Single-Supply Operation (+2V to +6V)• Rail-to-Rail Analog Signal Dynamic Range• Low On-Resistance (6-Ohm typical with 5V supply)Minimizes Distortion and Error Voltages• On-Resistance Flatness, 3-Ohm typical• Low Charge Injection Reduces Glitch Errors.Q = 4...

product image

PI5A125 Picture
See larger image
SeekIC No. : 004461008 Detail

PI5A125: Features: • Single-Supply Operation (+2V to +6V)• Rail-to-Rail Analog Signal Dynamic Range• Low On-Resistance (6-Ohm typical with 5V supply)Minimizes Distortion and Error Voltages&...

PI5A125 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PI5A125
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single-Supply Operation (+2V to +6V)
• Rail-to-Rail Analog Signal Dynamic Range
• Low On-Resistance (6-Ohm typical with 5V supply)Minimizes Distortion and Error Voltages
• On-Resistance Flatness, 3-Ohm typical
• Low Charge Injection Reduces Glitch Errors.Q = 4pC (typical)
• Replaces Mechanical Relays
• High Speed: tON = 10ns typical
• Wide 3dB Bandwidth: 300 MHz (typical)
• High-Current Channel Capability: >100mA
• TTL/CMOS Logic Compatible
• Low Power Consumption (0.5mW typical)
• Small outline transistor package minimizes board area 65 mil wide SOT23-5 (T5)


Application

• Audio, Video Switching and Routing
• Battery-Powered Communication Systems
• Computer Peripherals
• Telecommunications
• Portable Instrumentation
• Mechanical Relay Replacement
• Cell Phones
• PDAs


Pinout

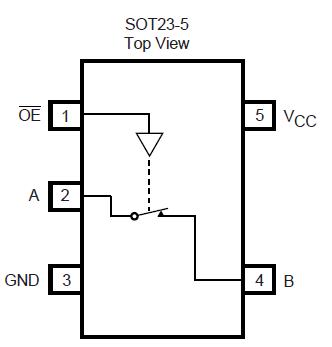

Connection Diagram


Specifications

Voltages Referenced to GND
VCC ....................................................................................... 0.5V to +7V
VOE, VA, VB
(1) ................................................................ 0.5V to VCC +2V
.............................................. or 30mA, whichever occurs first
Current (any terminal except A, B) ..................................30mA
Current: A,B (pulsed at 1ms, 10% duty cycle) .............. 120mA

Note 1:
Signals on OE, A, B exceeding Vcc or GND are clamped byinternal diodes. Limit forward diode current to 30mA.


Description

The PI5A125 is a single analog switch designed for single-supplyoperation. This high-precision device is ideal for low-distortionaudio, video, signal switching and routing.

The PI5A125 is a single-pole single-throw (SPST), normally closed(NC) switch. The switch is open when OE is HIGH.

This switch conducts current equally well in either direction whenon. When off, it blocks voltages up toVCC.

The PI5A125 is fully specified with +5V, and +3.3V supplies. With+5V, it guarantees <10-ohms ON-resistance. ON-resistance flatnessis less than 5-ohms over the specified range. The switch alsoguarantees fast switching speeds (tON <20ns).This product is available in a 5-pin SOT23 plastic package foroperation over the industrial (40°C to +85°C) temperature range.
