Product Details

Description

Features:

· 300 mW total power dissipation
· Very small 1.6 mm x 1.2 mm ultra thin package
· Excellent coplanarity due to straight leads
· Replaces two SC-75/SC-89 packaged transistors on same PCB area
· Reduces required PCB area
· Reduced pick and place costs.

Application

· General purpose switching and amplification
· Inverter and interface circuits
· Circuit driver.

Pinout

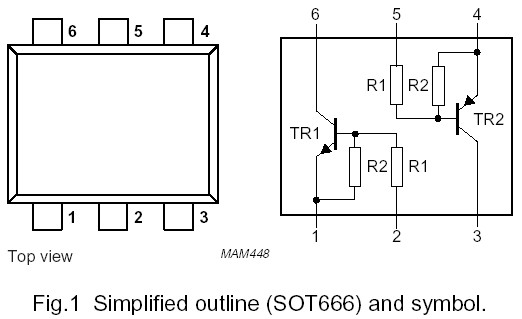

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
Per transistor; for the PNP transistor with negative polarity
V_CBO	collector-base voltage	open emitter	-	-50	V
V_CEO	collector-emitter voltage	open base	-	-50	V
V_EBO	emitter-base voltage	open collector	-	-10	V
Vi	input voltage TR1 positive negative		- - - -	+40 -10 +10 -40	V V V V
Vi	input voltage TR2 positive negative		- - - -	+40 -10 +10 -40	V V V V
I_O	collector current (DC)		-	-100	mA
I_CM	peak base current		-	100	mA
P_tot	total power dissipation	Tamb 25 °C; notes 1 and 2	-	200	mW
T_stg	storage temperature		-65	+150	°C
T_j	junction temperature		-	150	°C
T_amb	operating ambient temperature		-65	+150	°C
Per device
P_tot	total power dissipation	Tamb25 °C; note 1	-	300	mW

Notes
1. Transistor mounted on an FR4 printed-circuit board.
2. The only recommended soldering is reflow soldering.

Description

NPN/PNP resistor-equipped transistor PEMD12 in a SOT666 plastic package.
