PEMD10

Features: · 300 mW total power dissipation· Very small 1.6×1.2 mm ultra thin package· Excellent coplanarity due to straight leads· Replaces two SC-75/SC-89 packaged transistors on same PCB area· Reduces required PCB area· Reduced pick and place costs.Application· General purpose switching and ampl...

product image

PEMD10 Picture
See larger image
SeekIC No. : 004459520 Detail

PEMD10: Features: · 300 mW total power dissipation· Very small 1.6×1.2 mm ultra thin package· Excellent coplanarity due to straight leads· Replaces two SC-75/SC-89 packaged transistors on same PCB area· Red...

PEMD10 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PEMD10
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 300 mW total power dissipation
· Very small 1.6×1.2 mm ultra thin package
· Excellent coplanarity due to straight leads
· Replaces two SC-75/SC-89 packaged transistors on same PCB area
· Reduces required PCB area
· Reduced pick and place costs.


Application

· General purpose switching and amplification
· Inverter and interface circuits
· Circuit driver.


Pinout

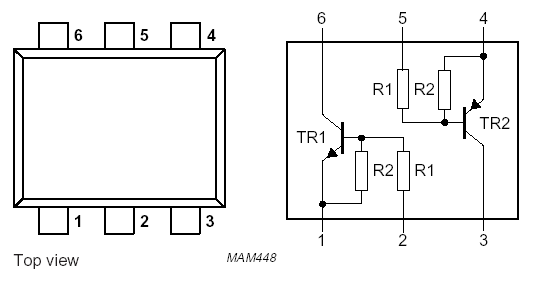

Connection Diagram


Specifications

SYMBOL PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
Per transistor; for the PNP transistor with negative polarity
VCBO collector-base voltage
open emitter
-
50
V
VCEO collector-emitter voltage
open base
-
50
V
VEBO emitter-base voltage
open collector
-
10
V
Vi input voltage TR1
positive
negative
-
-
-
-
+12
-5
+5
-12
V
V
V
V
input voltage TR2
positive
negative
IO collector current (DC)
-
-100
mA
ICM peak base current
-
100
mA
Ptot total power dissipation
Tamb 25 °C; note 1
-
200
mW
Tstg storage temperature
-65
+150
°C
Tj junction temperature
-
150
°C
Tamb operating ambient temperature
-65
+150
°C
Per device
Ptot total power dissipation
Tamb25 °C; note 1
-
300
mW
Note
1. Transistor mounted on an FR4 printed-circuit board.


Description

NPN/PNP resistor-equipped transistors PEMD10 in a SOT666 plastic package.
