PE4306

Features:

• Attenuation: 1 dB steps to 31 dB
• Flexible parallel and serial programming interfaces
• Latched or direct mode
• Unique power-up state selection
• Positive CMOS control logic
• High attenuation accuracy and linearity over temperature and frequency
• Very low power consumption
• Single-supply operation
• 50 Ω impedance
• Pin compatible with PE430x series
• Packaged in a 20 Lead 4x4 mm QFN

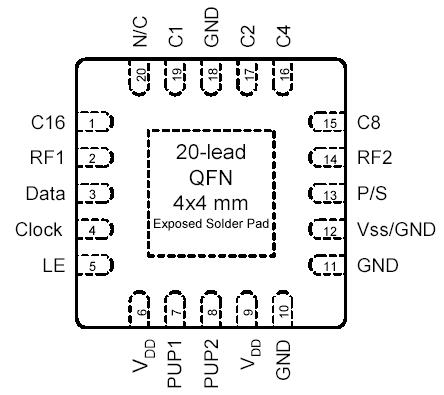

Pinout






Specifications

Symbol	Parameter/Conditions	Min	Max	Units
VDD	Power supply voltage	-0.3	4.0	V
VI	Voltage on any input	-0.3	VDD+ 0.3	V
TST	Storage temperature range	-65	150	°C
TOP	Operating temperature range	-40	85	°C
PIN	Input power (50Ω)		24	dBm
VESD	ESD voltage (Human Body Model)		500	V

Description

The PE4306 is a high linearity, 5-bit RF Digital Step Attenuator DSA covering a 31 dB attenuation range in 1 dB steps. This 50-ohm RF DSA provides both parallel and serial CMOS control interface operates on a single 3-volt supply and maintains high attenuation accuracy over frequency and temperature. PE4306 also has a unique control interface that allows the user to select an initial attenuation state at power-up. The PE4306 also exhibits very low insertion loss and low power consumption. Applications include wireless base station, fixed wireless, microwave, VSAT, broadband telecom, military, space, test instrumentation, and optical equipment. It is offered in a 20-lead QFN package.
