PE4302-EK

Features: • Attenuation: 0.5 dB steps to 31.5 dB• Flexible parallel and serial programming interfaces• Unique power-up state selection• Positive CMOS control logic• High attenuation accuracy and linearity over temperature and frequency• Very low power consumptio...

product image

PE4302-EK Picture
See larger image
SeekIC No. : 004457845 Detail

PE4302-EK: Features: • Attenuation: 0.5 dB steps to 31.5 dB• Flexible parallel and serial programming interfaces• Unique power-up state selection• Positive CMOS control logic• Hig...

PE4302-EK Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PE4302-EK
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Attenuation: 0.5 dB steps to 31.5 dB
• Flexible parallel and serial programming interfaces
• Unique power-up state selection
• Positive CMOS control logic
• High attenuation accuracy and linearity
  over temperature and frequency
• Very low power consumption
• Single-supply operation
• 50 impedance
• Packaged in a 20 lead 4x4mm QFN


Pinout

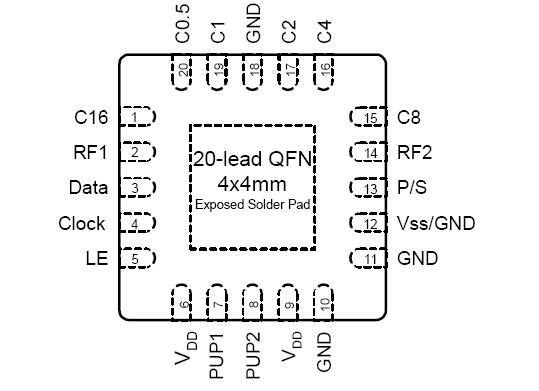

Connection Diagram


Specifications

Symbol Parameter/Conditions Min Max Units
VDD Supply voltage -0.3 4.0 V
VI Voltage on any input -0.3 VDD+
0.3		 V
TST Storage temperature range -65 150 °C
TOP Operating temperature range -40 85 °C
VESD ESD voltage (Human Body Model)   500 V
PIN Maximum input power 24 dBm



Description

The PE4302 is a high linearity, 6-bit RF Digital Step Attenuator "DSA" covering a 31.5 dB attenuation range in 0.5 dB steps. This 50-ohm RF DSA provides both parallel and serialCMOS control interface operates on a single 3-volt supply and maintains high attenuation accuracy over frequency and temperature. PE4302 also has a unique control interface that allows the user to select an initial attenuation state at power-up. The PE4302 exhibits very low insertion loss and low power consumption. This functionality is delivered in a 4x4mm QFN footprint.

The PE4302 is manufactured in Peregrine's patented Ultra Thin Silicon (UTSi®) CMOS process, offering the performance of GaAs with the economy and integration of conventional CMOS.
