PE4283

Features:

• Single-pin or complementary CMOS logic control inputs
• 1.5 kV ESD tolerance
• Low insertion loss: 0.65 dB at 1000 MHz, 0.70 dB at 2500 MHz
• RFC-RF1/RF2 isolation of 33.5 dB at 1000 MHz, 21.5 dB at 2500 MHz
• RF1-RF2 isolation of 37.5 dB at 1000 MHz, 22 dB at 2500 MHz
• Typical input 1 dB compression point of +32 dBm
• Ultra-small SC-70 package

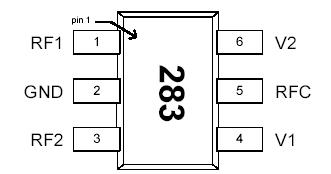

Pinout






Specifications

Absolute Maximum Ratings are those values listed in the above table. Exceeding these values may cause permanent device damage. Functional operation should be restricted to the limits in the DC Electrical Specifications table. Exposure to absolute maximum ratings for extended periods may affect device reliability.

Description

The PE4283 RF Switch is designed to cover a broad range of applications from DC through 4000 MHz. This reflective switch integrates on-board CMOS control logic with a low voltage CMOS-compatible control interface, and can be controlled using either single-pin or complementary control inputs. The PE4283 operates using +2 to +3 volt power supply voltage.
