PE42742

Features: • Meets FCC 15.115 spec of 80 dB isolation @ 216 MHz• Unpowered operational state• 2000 V HBM ESD tolerance, RF Pins• CTB performance of 90 dBc• High isolation: 63 dB at 1000 MHz• Low insertion loss: typically 0.5 dB at 5 MHz, 0.8 dB at 1000 MHz•...

product image

PE42742 Picture
See larger image
SeekIC No. : 004457840 Detail

PE42742: Features: • Meets FCC 15.115 spec of 80 dB isolation @ 216 MHz• Unpowered operational state• 2000 V HBM ESD tolerance, RF Pins• CTB performance of 90 dBc• High isolatio...

PE42742 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PE42742
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Meets FCC 15.115 spec of 80 dB isolation @ 216 MHz
• Unpowered operational state
• 2000 V HBM ESD tolerance, RF Pins
• CTB performance of 90 dBc
• High isolation: 63 dB at 1000 MHz
• Low insertion loss: typically 0.5 dB at 5 MHz, 0.8 dB at 1000 MHz
• CMOS single-pin control with logic select
• Single +3 volt supply operation
• Low current consumption: 8 µA




Pinout

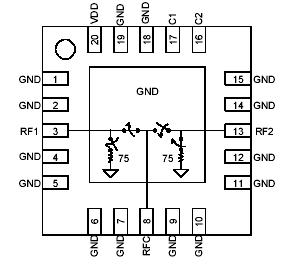

Connection Diagram




Specifications

Symbol Parameter/Conditions Min Max Units
VDD Power supply voltage -0.3 4.0 V
VI Voltage on any input -0.3 VDD+
0.3		 V
PRF RF power on RFC, RF1, RF2
Terminated/Through		 24/33 dBm
TST Storage temperature -65 150
TOP Operating temperature -40 85
VESD ESD Voltage* RF Pins 1500 V
ESD Voltage* Digital Pins 100 V
*HBM, ML_STD 883 Method 3015.7




Description

The PE42742 is an SPDT UltraCMOS™ Switch designed for Broadband applications such as CATV, DTV, Multi-Tuner DVR (Digital Video Recorder), Set-top Box, PCTV and Game Boxes. PE42742 meets FCC 15.115 spec of 80 dB isolation @ 216 MHz and offers high isolation and low insertion loss in both a powered and a unique unpowered default state.

The PE42742 covers a broad frequency range from near DC to beyond 2200 MHz with a single positive supply and CMOS control. PE42742 provides a smaller, cost effective, more reliable and manufacturable alternative to mechanical relays in settop box applications.

The PE42742 is manufactured on Peregrine's UltraCMOS™ process, a patented variation of silicon-on-insulator (SOI) technology on a sapphire substrate, offering the performance of GaAs with the economy and integration of conventional CMOS.
