Features:

• Unpowered operational state
• All-Off terminated state
• CTB performance of 90dBc
• High isolation 63 dB at 1 GHz
• Low insertion loss: typically 0.5 dB at 5 MHz, 0.8 dB at 1 GHz
• CMOS two-pin control
• Single +3 volt supply operation
• 1 kV ESD
• Low current consumption: 8 µA


Pinout

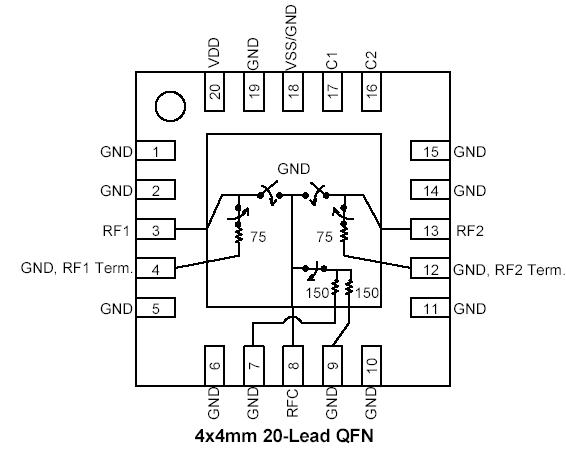

Connection Diagram


Specifications

Symbol Parameter/Conditions Min Max Units
VDD Power supply voltage -0.3 4.0 V
VI Voltage on any input -0.3 VDD+
0.3		 V
PRF RF power on RFC, RF1, RF2
Terminated/Through		   24/33 dBm
TST Storage temperature -65 +150
TOP Operating temperature -40 +85
VESD ESD voltage
(Human Body Model)		 1,000   V



Description

The PE4274 is an SPDT UltraCMOS™ Switch designed for Broadband applications such as CATV, DTV, Multi-Tuner DVR (Digital Video Recorder), Set-top Box, PCTV and Game Boxes. It offers high isolation and low insertion loss in both a powered and a unique unpowered default state. The PE4274 covers a broad frequency range from near DC to beyond 2.2 GHz with a single positive supply and CMOS control. The PE4274 provides a smaller, cost effective, more reliable and manufacturable alternative to mechanical relays in some set-top box applications.

The PE4274 is manufactured in Peregrine's patented Ultra Thin Silicon (UTSi®) CMOS process, offering the performance of GaAs with the economy and integration of conventional CMOS.
