Features:

• High ESD tolerance of 1.5 kV
• Single-pin CMOS logic control
• Low insertion loss: 0.5 dB at 1000 MHz, 0.6 dB at 2000 MHz
• Isolation of 43 dB at 1000 MHz, 33.5 dB at 2000 MHz
• Typical input 1 dB compression point of +32 dBm
• Small 8-lead MSOP package




Pinout

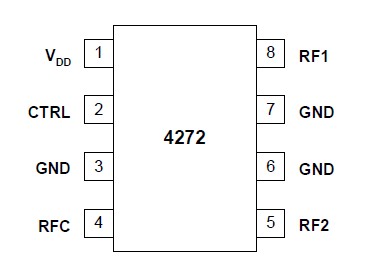

Connection Diagram




Specifications

Symbol
Parameter/Conditions
Min
Max
Units
VDD
 Supply voltage -0.3
4.0
V
VI
 Voltage on any input
-0.3
VDD
+ 0.3
V
TST
 Storage temperature range
-65
150
°C
PIN
 Input Power
34
dBm
VESD
 ESD voltage (Human Body
Model, MIL-STD 883)
1500
V





Description

The PE4272 RF Switch is designed for the TV tuner, PCTV, set top box, DTV, DVR and general broadband applications. PE4272 offers industry leading broadband linearity, 1.5 kV ESD tolerance and a simple CMOS interface. The device offers a simple alternative solution to pin diode and mechanical relay switches.

The PE4272 SPDT High Power RF Switch is manufactured on Peregrine's UltraCMOS™ process, a patented variation of silicon-on-insulator (SOI) technology on a sapphire substrate, offering the performance of GaAs PE4272 with the economy and integration of conventional CMOS.
