PE42660

Features:

• Three pin CMOS logic control with integral decoder/driver
• Exceptional harmonics performance: 2fo = -88 dBc and 3fo = -85 dBc
• Low TX insertion loss: 0.55 dB at 900 MHz, 0.65 dB at 1900 MHz
• TX RX Isolation of 48 dB at 900 MHz, 40 dB at 1900 MHz
• 1500 V HBM ESD tolerance all ports
• 41 dBm P1dB
• No blocking capacitors required

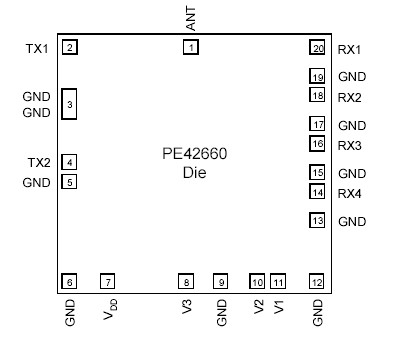

Pinout






Specifications

Symbol	Parameter/Conditions	Min	Max	Units
VDD	Power supply voltage	-0.3	4.0	V
VI	Voltage on any input	-0.3	VDD + 0.3	V
TST	Storage temperature range	-65	+150	mA
PIN(50 Ω)	TX input power (50 Ω)4,5		+38	dBm
	RX input power (50 Ω) 4,5		+23
PIN (:1)	TX input power (VSWR :1) 4,5		+35	dBm
VESD	ESD Voltage (HBM, MIL_STD 883 Method 3015.7)		1500	V
	ESD Voltage at ANT Port (IEC 61000-4-2)		1700	V

Notes: 4. Assumes RF input period of 4620 µs and duty cycle of 50%.
5. V_DD within operating range specified in Table 2.




Description

The PE42660 is a highly integrated high-isolation Switch designed for GSM applications, covering a broad frequency range from 100 MHz to 3 GHz. This single-supply SP6T switch integrates a three-pin CMOS control interface. PE42660 also provides low insertion loss with extremely low bias requirements while operating on a single 2.75-volt supply. PE42660 is offered in DIE form.Peregrines HaRP technology enhancements deliver high linearity and exceptional harmonics performance. PE42660 is an innovative feature of the UltraCMOS process, providing performance superior to GaAs with the economy and integration of conventional CMOS.Click on the link below to download the Product Brief for this part. For more information on this product, please contact Peregrine Semiconductor directly at sales@psemi.com.
