PE4261

Features:

• Two pin CMOS logic control inputs
• Low TX insertion loss: 0.55 dB at 900 MHz, 0.70 dB at 1900 MHz
• Isolation of 39 dB at 900 MHz, 31 dB at 1900 MHz
• Low harmonics 2fo = -82 dBc and 3fo = -74 dBc at 35 dBm input power
• 1500 V HBM ESD tolerance
• Built in CMOS decoder/driver
• RX SAW over voltage protection circuit
• No blocking capacitors required

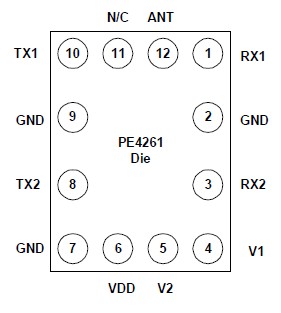

Pinout






Specifications

Symbol	Parameter/Conditions	Min	Max	Units
VDD	Supply voltage	-0.3	4.0	V
VI	Voltage on any input	-0.3	VDD + 0.3	V
TST	Storage temperature range	-65	+150	°C
TOP	Operating temperature range	-40	+85	°C
PIN	TX input power (50 )		+38	dBm
	RX input power (50 )		+23
PIN(:1)	TX input power (VSWR = (:1)5,6 824-915 MHz		+35	dBm
	TX input power (VSWR = (:1)5,6 1710-1910 MHz		+33
VESD4	ESD Voltage (HBM, MIL_STD 883 Method 3015.7)		1500	V
	ESD Voltage (MM, JEDEC, JESD22-A114-B)		100	V
	ESD Voltage (CDM, JEDEC, JESD22-A114-B)		1500	V
	ESD Voltage (IEC 61000-4-2, ANT port)		2000	V

Note: 4. ANT port rated higher per Application note, see page 10.
5. Assumes RF input duty cycle of 50% and 4620 s.
6. VDD within operating range specified in Table 4.




Description

The PE4261 is a highly integrated high-isolation Switch designed for GSM applications, covering a broad frequency range from 100MHz to 3 GHz. This single-supply SP4T switch integrates a two-pin CMOS control interface. It also provides low insertion loss with extremely low bias requirements while operating on a single 2.6-volt supply. PE4261 is offered as a Flip Chip.Click on the link below to download the Product Brief for this part. For more information on this product, please contact Peregrine Semiconductor directly at sales@psemi.com.
