PE4257

Features: • 50 characteristic impedance• Integrated 50 0.25 watt terminations• High input IP3 > +55 dBm• High isolation 64 dB at 1000 MHz• Low insertion loss: typically 0.75 dB at 1000 MHz and 0.95 dB at 2000 MHz• LV CMOS two-pin control• Single +3 vo...

product image

PE4257 Picture
See larger image
SeekIC No. : 004457816 Detail

PE4257: Features: • 50 characteristic impedance• Integrated 50 0.25 watt terminations• High input IP3 > +55 dBm• High isolation 64 dB at 1000 MHz• Low insertion loss: typi...

PE4257 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PE4257
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 50 characteristic impedance
• Integrated 50 0.25 watt terminations
• High input IP3 > +55 dBm
• High isolation 64 dB at 1000 MHz
• Low insertion loss: typically 0.75 dB at 1000 MHz and 0.95 dB at 2000 MHz
• LV CMOS two-pin control
• Single +3 volt supply operation
• Low current consumption: 8 A




Pinout

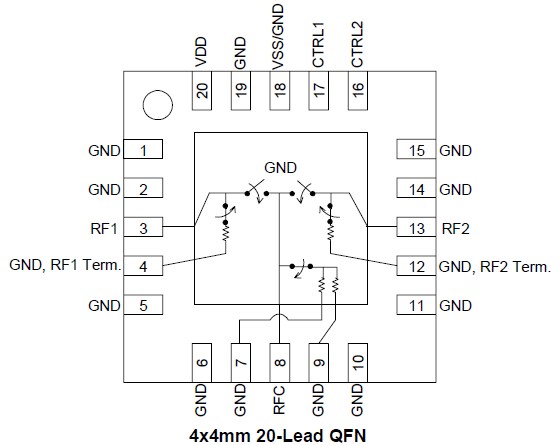

Connection Diagram




Specifications

Symbol
Parameter/Condition
Min
Max
Unit
VDD
 Power supply voltage
-0.3
4.0
V
VI
 Voltage on CTRL input
-0.3
VDD + 0.3
V
PRF
 RF power on RFC, RF1, RF2
On Port/ Terminated Port
33/24
dBm
TST
 Storage temperature
-65
+150
TOP
 Operating temperature
-40
+85
VESD
 ESD voltage
(Human Body Model)
1000
V





Description

The PE4257 is a high-isolation SPDT Switch designed for RF applications, covering a broad frequency range from DC up to 3 GHz. This single-supply absorptive switch integrates a two-pin CMOS control interface. PE4257 also provides low insertion loss with extremely low bias requirements while operating on a single 3-volt supply.
