PE4239

Features: • Single-pin or complementary CMOS logic control inputs• +3.0-volt power supply needed for single-pin control mode• Low insertion loss: 0.7 dB at 1.0 GHz, 0.9 dB at 2.0 GHz• Isolation of 32 dB at 1.0 GHz, 23 dB at 2.0 GHz• Typical input 1 dB compression poin...

product image

PE4239 Picture
See larger image
SeekIC No. : 004457805 Detail

PE4239: Features: • Single-pin or complementary CMOS logic control inputs• +3.0-volt power supply needed for single-pin control mode• Low insertion loss: 0.7 dB at 1.0 GHz, 0.9 dB at 2.0 G...

PE4239 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PE4239
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single-pin or complementary CMOS logic control inputs
• +3.0-volt power supply needed for single-pin control mode
• Low insertion loss: 0.7 dB at 1.0 GHz, 0.9 dB at 2.0 GHz
• Isolation of 32 dB at 1.0 GHz, 23 dB at 2.0 GHz
• Typical input 1 dB compression point of +27 dBm
• Ultra-small SC-70 package




Pinout

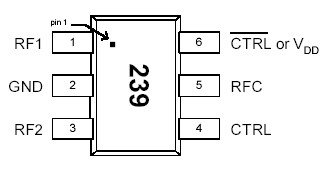

Connection Diagram




Specifications

Symbol Parameter/Conditions Min Max Units
VDD Power supply voltage -0.3 4.0 V
VI Voltage on CTRL input -0.3 VDD + 0.3 V
TST Storage temperature range -65 150 °C
TOP Operating temperature -40 85 °C
PIN Input power (50Ω) 30 dBm
VESD ESD voltage
(Human Body Model)		 1500 V





Description

The PE4239 UltraCMOS™ RF Switch is designed to cover a broad range of applications from DC through 3.0 GHz. This reflective switch integrates on-board CMOS control logic with a low voltage CMOS-compatible control interface, and PE4239 can be controlled using either single-pin or complementary control inputs. Using a nominal +3-volt power supply voltage, a typical input 1 dB compression point of +27 dBm can be achieved.

The PE4239 UltraCMOS™ RF Switch is manufactured in Peregrine's patented Ultra Thin Silicon (UTSi®) CMOS process, offering the performance of GaAs with the economy and integration of conventional CMOS.
