PE4230

Features:

• Single 3-volt power supply
• Low insertion loss: 0.35 dB at 1.0 GHz, 0.55 dB at 2.0 GHz
• High isolation of 39 dB at 1.0 GHz, 30 dB at 2.0 GHz
• Typical input 1 dB compression point of +32 dBm
• Single-pin CMOS or TTL logic control
• Low cost

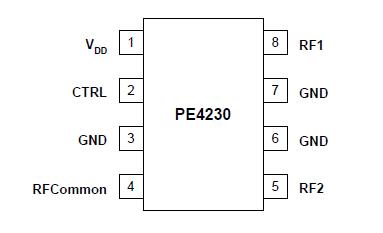

Pinout






Specifications

Symbol	Parameter/Conditions	Min	Max	Units
VDD	Power supply voltage	-0.3	4.0	V
VI	Voltage on any input except for the CTRL input	-0.3	VDD+ 0.3	V
VCTRL	Voltage on CTRL input		5.0	V
TST	Storage temperature range	-65	150
TOP	Operating temperature range	-40	85
PIN	Input power (50)		35	dBm
VESD	ESD voltage (Human Body Model)		250	V

Description

The PE4230 SPDT Switch is designed to cover a broad range of applications from DC to 3.0 GHz. This single-supply reflective switch integrates on-board CMOS control logic driven by a simple, single-pin CMOS or TTL compatible control input. Using a nominal +3-volt power supply, a typical input 1 dB compression point of +32 dBm can be achieved. The PE4230 also exhibits input-output isolation of better than 39 dB at 1.0 GHz and is offered in a small 8-lead MSOP package.
